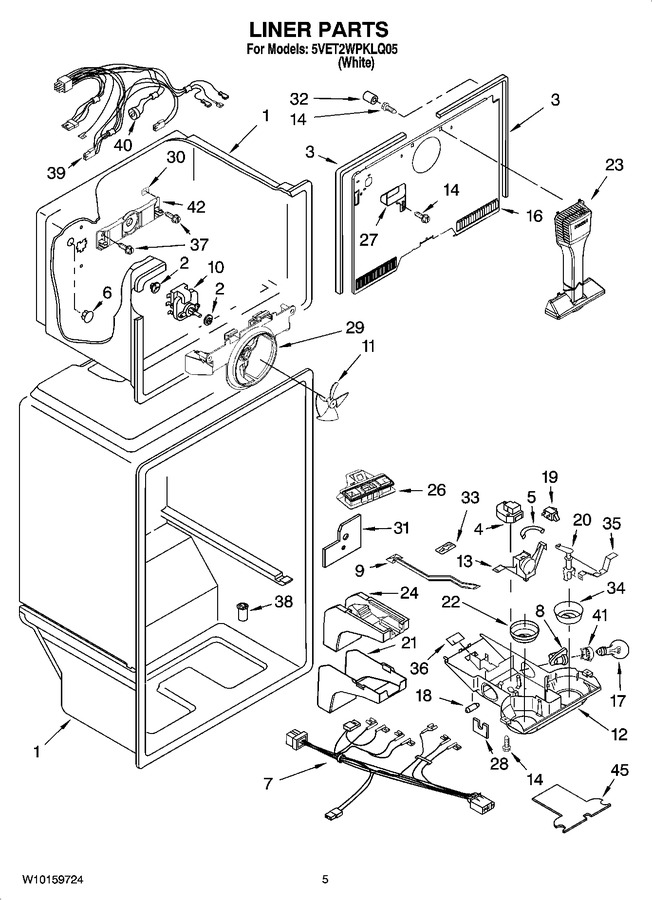

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | 2321260 | Timer, Defrost |
|
- | |||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | W10123573 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (2) (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | 2321273 | Fan Motor |
|
$ 141.59 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10149973 | Control Box |
|
- | |||||
| 13 | W10129923 | Thermostat Assy. (includes Items 5, 18 & 36) |
|
- | |||||
| 14 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 16 | 2320194 | Cover, Evaporator |
|
- | |||||
| 17 | WP67002552 | Light Bulb (2) (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | 2321286 | Rocker Arm Switch |
|
- | |||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 31.91 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 108.24 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 131.03 | ||||
| 26 | 2212439 | Air Seperator Assy |
|
- | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 28 | 2179838 | Foil, Control Box |
|
- | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.67 | |||||
| 33 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 34 | 2302536 | Knob, Damper |
|
$ 27.08 | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 10.01 | |||||
| 37 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 38 | WP2210509 | Valve, Tube-body (Replaces: 2210509) |
|
$ 99.15 | |||||
| 39 | W10123571 | Wire Assembly, F.c. (includes Item 40) |
|
- | |||||
| 40 | 2321257 | Bi-metal Defrost |
|
- | |||||
| 41 | W10119914 | Shroud |
|
- | |||||
| 42 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 45 | 2201082 | Shield |
|
- |
