Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8193918 Accumulator Assy   (Replaces: 8268429) In-Stock Immediately $ 177.98

2 8268529 Shield Appelez-nous -
3 3400069 Screw Appelez-nous -
4 8268382 Sump Appelez-nous -
5 WP8268375 Check Valve, Sump   (Replaces: 8268389) In-Stock Immediately $ 82.36

6 W10083957V Chopper Assembly   (Replaces: 8268383) In-Stock Immediately $ 50.17

7 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

8 WP8531857 Protector, Inlet   (Replaces: 8268390) Special Order $ 171.13

9 WP8531857 Protector, Foreign   (Replaces: 8268427) Special Order $ 171.13

10 WPW10757217 Motor Assembly   (Replaces: 8268407) In-Stock Immediately $ 306.45

11 3400217 Screw Special Order $ 7.46

12 8268391 Screen, Separation Special Order $ 50.27

13 8268395 Seal, Sump Special Order $ 36.68

14 W10782773 Sump & Motor Assembly   (Replaces: 8268422) In-Stock Immediately $ 309.96

15 WPW10300599 Tab, Sump   (Replaces: 8268432) Special Order $ 90.13

16 3400921 Nut Appelez-nous -
17 8268411 Pump, Drain Appelez-nous -
18 WPW10757217 Volute, Back (also Order Item 23)   (Replaces: 8268405) In-Stock Immediately $ 306.45

19 8269144A Hose, Drain   (Replaces: 8269144) In-Stock Immediately $ 29.04

20 WPW10757217 Motor And Capacitor   (Replaces: 8268408) In-Stock Immediately $ 306.45

21 W11622922 Seal, Volute   (Replaces: 8268397) Special Order $ 24.18

22 WPW10757217 Impeller Kit   (Replaces: 8268398) In-Stock Immediately $ 306.45

23 8193951A Face Seal Assembly   (Replaces: 8268403) In-Stock Immediately $ 140.36

24 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 8.52

25 8269208 Thermister Special Order $ 92.20

26 WPW10334457 Capacitor   (Replaces: 8269507) Special Order $ 164.88

27 8269512 Shield, Capacitor Appelez-nous -
28 8269449 Shield, Drain Pump Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

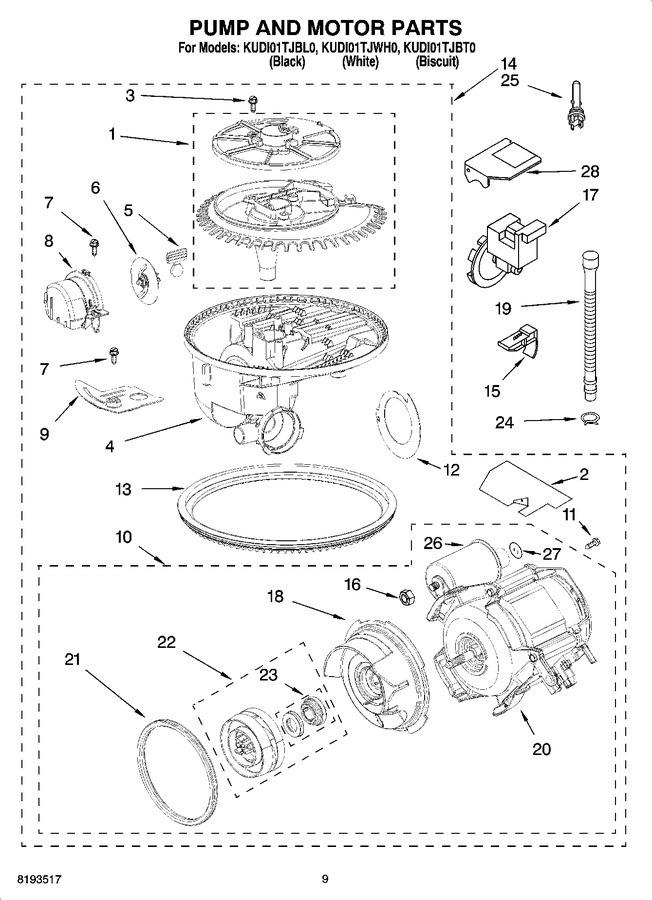

Diagram for KUDI01TJBL0
