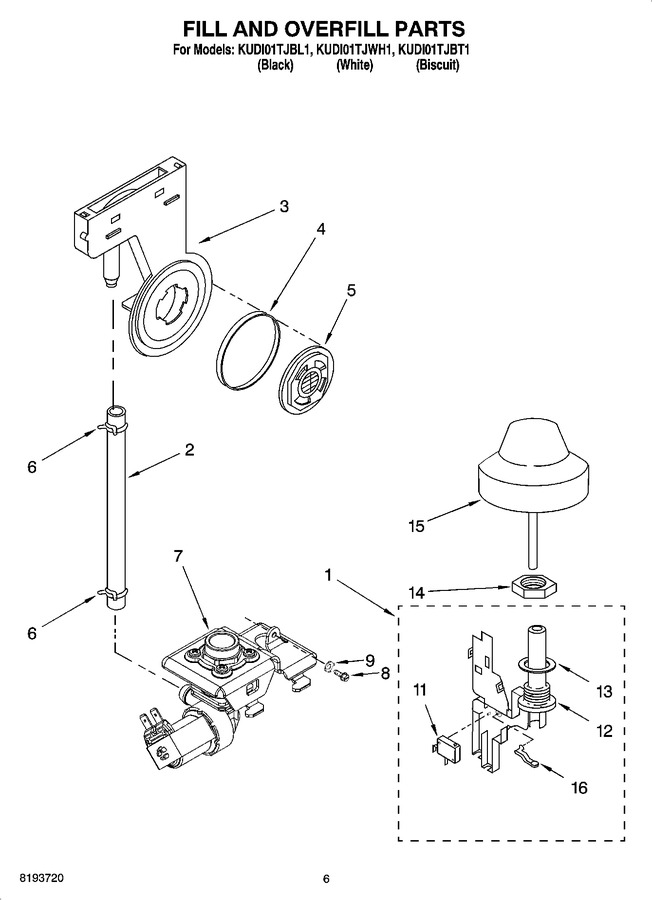

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193506		Control, Overfil Assembly   (Replaces: 8268889)			Immediately	$ 126.20
2	WP8269242		Hose, Inlet   (Replaces: 8269242)				$ 104.64
3	8269240		Water Inlet Assembly (includes Items 4 & 5)		Appelez-nous	-
4	8269241		Gasket				$ 7.70
5	8269268		Bezel, Inlet		Appelez-nous	-
6	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
7	WP8531669		Fill Valve Assembly   (Replaces: 8531669)			Immediately	$ 72.43
8	WP3400014		Screw   (Replaces: 3400014)				$ 7.75
9	WP3378128		Washer   (Replaces: 3378128)				$ 9.03
11	WP8268909		Switch, Overfill Control   (Replaces: 8268909)				$ 78.15
12	8193506		Standpipe, Overfill   (Replaces: 8268891)			Immediately	$ 126.20
13	WP8531743		Gasket, Flat   (Replaces: 4161670)			Immediately	$ 47.27
14	WP9741998		Nut, Standpipe   (Replaces: 9741998)				$ 7.49
15	WP8268895		Float & Retainer Assembly   (Replaces: 8268895)				$ 100.39
16	WP8268892		Lever, Overflow Switch   (Replaces: 8268892)			Immediately	$ 54.72

    View Diagram in Separate Window       Print Part List
