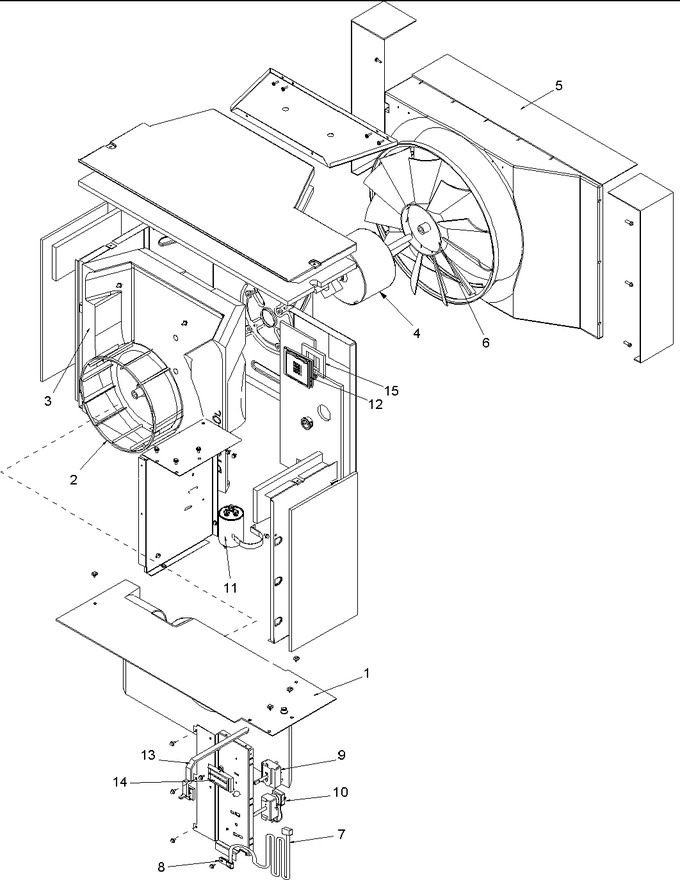

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3010004 | Venturi, Fan |
|
- | |||||
| 2 | BT1368002 | Wheel, Blower |
|
- | |||||
| 3 | BT3006005 | Scroll |
|
- | |||||
| 4 | BT1340005 | Motor |
|
- | |||||
| 5 | BT3011002 | Shroud, Fan (large) |
|
- | |||||
| 6 | BT1086706 | Blade, Fan 14`` |
|
- | |||||
| 7 | BT1210005 | Cord, Power (serv) |
|
- | |||||
| 8 | BT1393401 | Relief, Power Cord (large) |
|
- | |||||
| 9 | BT1370803 | Switch, Power (serv) |
|
- | |||||
| 10 | BT1370801 | Thermostat, Short Shaft (serv) |
|
- | |||||
| 11 | BT9457002 | Capacitor |
|
$ 80.87 | |||||
| 12 | BT3076100 | Door, Exhaust (rac) |
|
- | |||||
| 13 | BT3076219 | Lever Fresh Air Door |
|
- | |||||
| 14 | BT3076302 | Slide, Damper Control |
|
- | |||||
| 15 | BT1392611 | Foam Gasket |
|
- | |||||
| NI | 3093200S | Kit, Hard Start (service) |
|
- |
