Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8574116 Instructions, Installation Appelez-nous -
1 W10121917 Energy Guide Appelez-nous -
1 8574093 Guide, Use & Care Appelez-nous -
1 W10077954 Guide, Consumer Reference Appelez-nous -
1 W10082651 Tech Sheet Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 8564886 Stiffener, Door Appelez-nous -
4 8572753 Panel Front (includes Item 6) (stainless) Appelez-nous -
4 8572308 Panel Front (includes Item 6) (black) Appelez-nous -
4 8572310 Panel Front (includes Item 6) (white) Appelez-nous -
5 W11763739 Access Panel (white)   (Replaces: 8558261) Special Order $ 42.65

5 W11763736 Access Panel (black)   (Replaces: 8558260) In-Stock Immediately $ 42.25

6 WPW10073520 Insulation, Door   (Replaces: 8542577) Special Order $ 96.23

7 8572202 Bezel, Console (black) Special Order $ 127.43

7 8572203 Bezel, Console (white) Special Order $ 162.41

8 WPW10586591 Toe Panel (white)   (Replaces: 8558253) Special Order $ 309.39

8 W10871196 Toe Panel (black)   (Replaces: 8558252) Special Order $ 174.04

9 2209118W Nameplate (white) Appelez-nous -
9 2005292 Nameplate (black) Special Order $ 52.20

10 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

11 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26

16 W10831329 Insulation, Access Panel   (Replaces: 8542578) In-Stock Immediately $ 43.30

17 W10083931A Handle (stainless)   (Replaces: W10077925) Special Order $ 107.25

17 W10077926 Handle (black) Appelez-nous -
17 W10077927 Handle (white) Appelez-nous -
18 WP8534008 Screw   (Replaces: 8534008) Special Order $ 9.37


    View Diagram in Separate Window     Print Icon   Print Part List

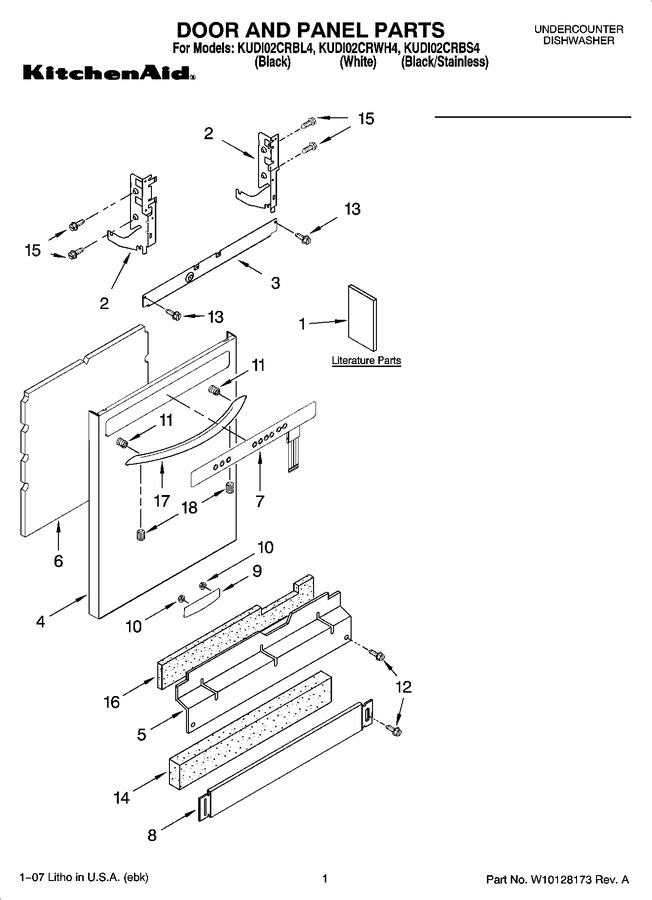

Diagram for KUDI02CRBS4
