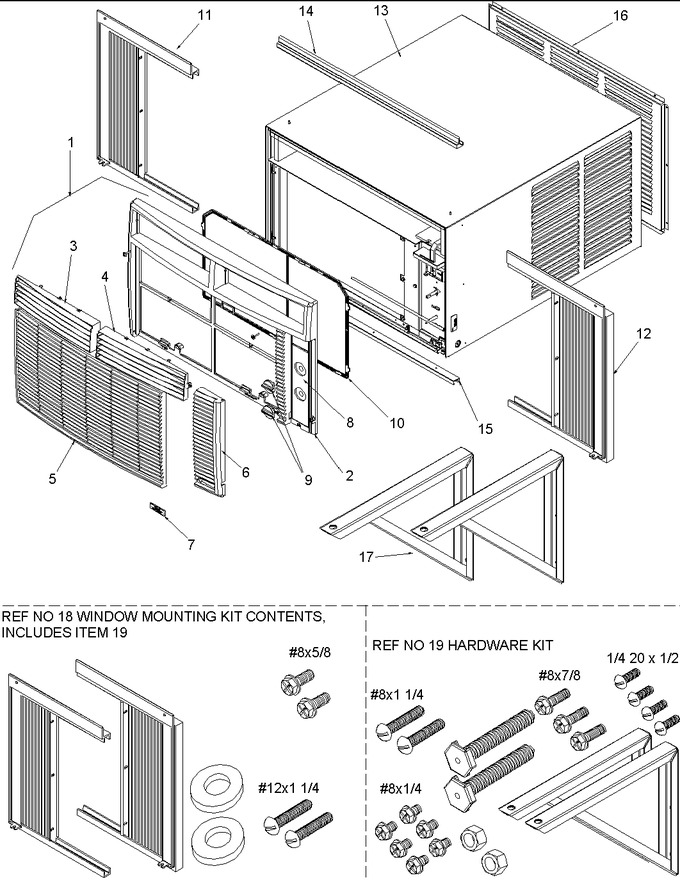

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3075030 | Assy,front Lrg Ldr |
|
- | |||||
| 2 | BT3075104 | Frame |
|
- | |||||
| 3 | BT3075413 | Left Vent Assy |
|
- | |||||
| 4 | BT3075411 | Right Vent Assy |
|
- | |||||
| 5 | BT3075202 | Grill - Front |
|
- | |||||
| 8 | BT1493357 | Label,control-lrg,2 Pos |
|
- | |||||
| 9 | BT3075631 | Knob, Rac (cool Gray) |
|
$ 30.93 | |||||
| 10 | BT1369602 | Filter, Air (serv) |
|
- | |||||
| 13 | 3050801S | Wrapper Assy |
|
- | |||||
| 14 | 3003002P | Support, Top (w/paint Lrg) |
|
- | |||||
| 15 | 3003102P | Support, Bottom (brk/paint Lrg |
|
- | |||||
| 16 | 3002206P | Pnl, Rear Louver (w/paint Lrg) |
|
- | |||||
| 18 | WMK-LRG | Kit, Window Install (large) |
|
- | |||||
| NI | BT1392601 | Foam .25 X .50 (7.0 Ft) |
|
- | |||||
| NI | BT1392600 | Foam .75 X 1.50 (3.5 Ft) |
|
- |
