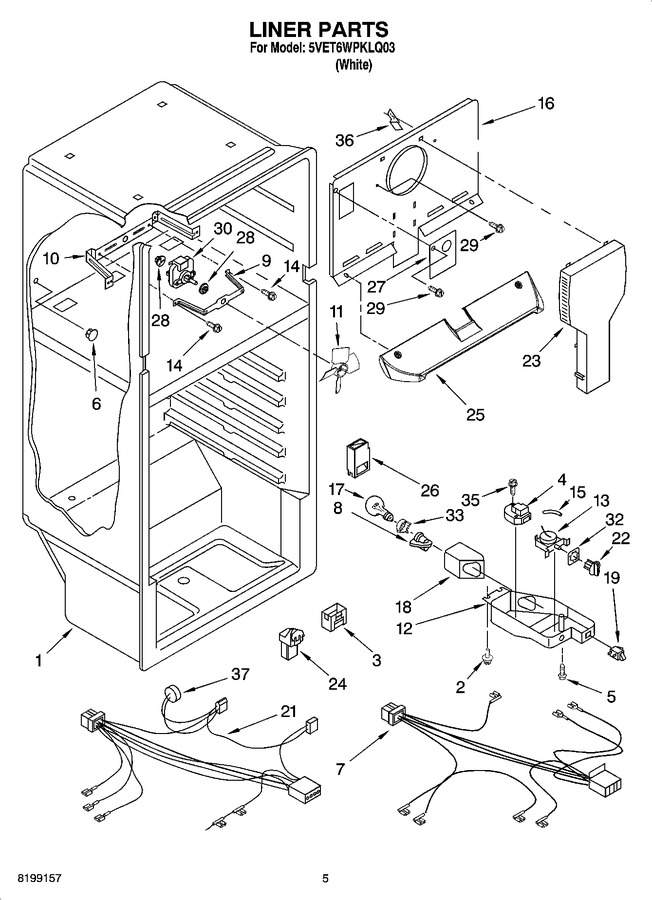

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet-plastic |
|
$ 12.42 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | WP2188379 | Timer, Defrost (Replaces: 2188379) |
|
$ 203.07 | |||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | 2176927 | Wire Assembly (control Box) |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 42.28 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | 2169141 | Fan Blade |
|
- | |||||
| 12 | 2215326 | Control Box |
|
- | |||||
| 13 | WPW10567140 | Thermostat (Replaces: 2183403) |
|
Immediately | $ 92.99 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 8.35 | |||||
| 16 | 2201205 | Cover, Evaporator |
|
- | |||||
| 17 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 12.34 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 108.92 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 21 | 2192097 | Wiring, Freezer (includes Item 37) |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 27.70 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2261978 | Cover, Air Return |
|
$ 135.09 | |||||
| 26 | 2221992 | Air Diffuser |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 47.22 | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2264462) |
|
Immediately | $ 46.17 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | WP2201215 | Evaporator Fan Motor (Replaces: 2201215) |
|
$ 223.76 | |||||
| 32 | 2165773 | Retainer |
|
- | |||||
| 33 | WP2175210 | Shroud (Replaces: 2175210) |
|
$ 86.74 | |||||
| 35 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.95 | |||||
| 36 | 2197416 | Deflector, Air |
|
$ 80.24 | |||||
| 37 | WP4387490 | Defrost Bimetal (Replaces: 2183073) |
|
Immediately | $ 30.88 |
