SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

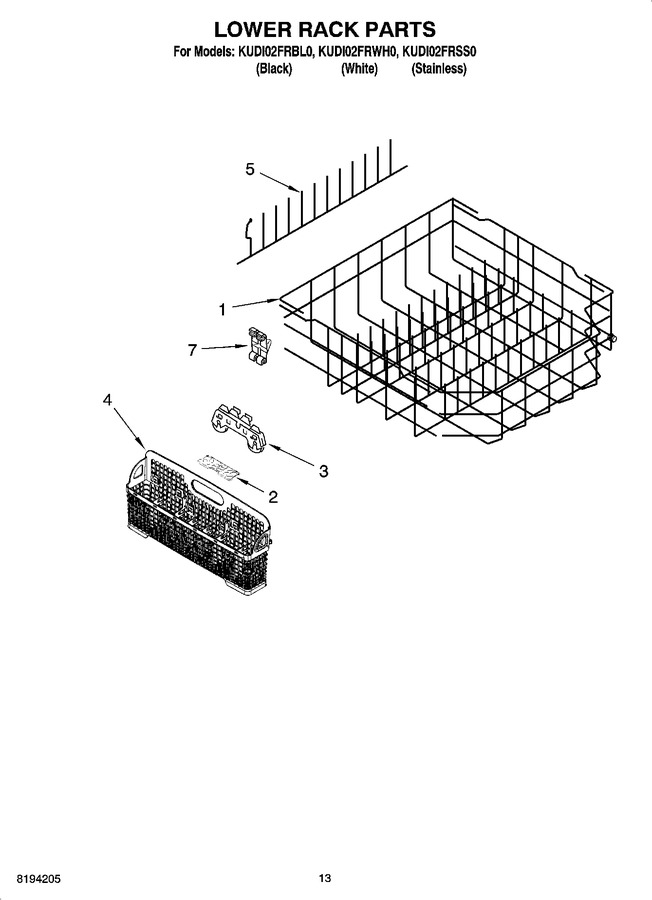

1	W10780925		Lower Rack Assembly   (Replaces: 8539263)			Immediately	$ 212.49
2	8519662		Lid, Basket				$ 52.35
3	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
4	WP8531288		Basket, Silverware   (Replaces: 8531288)			Immediately	$ 86.63
5	W10728160		Tine Row   (Replaces: 8519589)			Immediately	$ 49.07
7	WP8531314		Retainer, Tine Row   (Replaces: 8531314)				$ 30.85
	8171477		Floor Mount Kit				$ 62.44
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	8171657		Accessories Side Panel Kits (black)				$ 625.77
	8171658		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	8171659		Accessories Side Panel Kits (stainless Steel Color Panel Kits)				$ 705.00
	4396401		Accessories Side Panel Kits (black)		Appelez-nous	-
	4396402		Accessories Side Panel Kits (white)		Appelez-nous	-
	4396403		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	4396404		Accessories Side Panel Kits (cobalt Blue)		Appelez-nous	-
	4396405		Accessories Side Panel Kits (hunter Green)		Appelez-nous	-
	4396406		Accessories Side Panel Kits (empire Red)		Appelez-nous	-
	4396407		Accessories Side Panel Kits (majestic Yellow)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	4396655		Accessories Side Panel Kits (for Use With 6`` Clearance App.)		Appelez-nous	-
	4392899		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	8171571		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (cobalt Blue)				$ 32.06
	8171651		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (hunter Green)				$ 20.17
	8171652		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (empire Red)				$ 31.73
	8171653		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (majestic Yellow)		Appelez-nous	-
	W10202939		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 26.23
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (superior Black)				$ 59.89
	8171573		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (cobalt Blue)		Appelez-nous	-
	4396268		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (majestic Yellow)		Appelez-nous	-
	4396269		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (hunter Green)		Appelez-nous	-
	4396267		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (empire Red)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	N/A		Anti-tip Kit		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8171656		Accessories Side Panel Kits (white)				$ 418.17

    View Diagram in Separate Window       Print Part List
