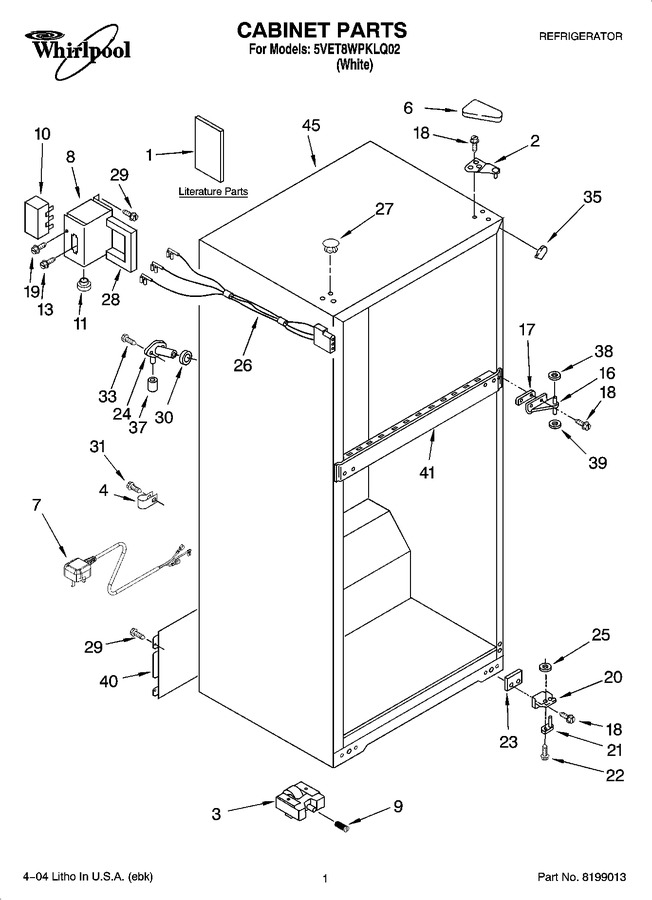

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2222092 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 2207890 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge Butt, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | 2217757 | Roller-front |
|
- | |||||
| 4 | 489348 | Clamp, Tube |
|
- | |||||
| 6 | WP2213360 | Cover Hinge (Replaces: 2213360) |
|
$ 20.19 | |||||
| 7 | 2264738 | Cord, Service (Replaces: 2197909) |
|
- | |||||
| 8 | 2188194 | Enclosure, Term. |
|
- | |||||
| 9 | 2222100 | Screw |
|
$ 104.80 | |||||
| 10 | 1129346 | Terminal Block |
|
- | |||||
| 11 | 1129449 | Bushing |
|
- | |||||
| 13 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 18 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 20 | WP2325482 | Hinge Butt, Btm (Replaces: 2221926) |
|
Immediately | $ 80.00 | ||||
| 21 | 9791682 | Hinge-pin, Btm |
|
$ 26.60 | |||||
| 22 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 11.53 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 25 | WP488296 | Washer (Replaces: 488296) |
|
$ 7.55 | |||||
| 26 | 2209657 | Wire Assembly (Replaces: 2174913) |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 28 | 2167227 | Gasket |
|
- | |||||
| 29 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 33 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 35 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 8.09 | |||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.67 | |||||
| 38 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 39 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 40 | 2213762 | Cover-unit |
|
- | |||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- |
