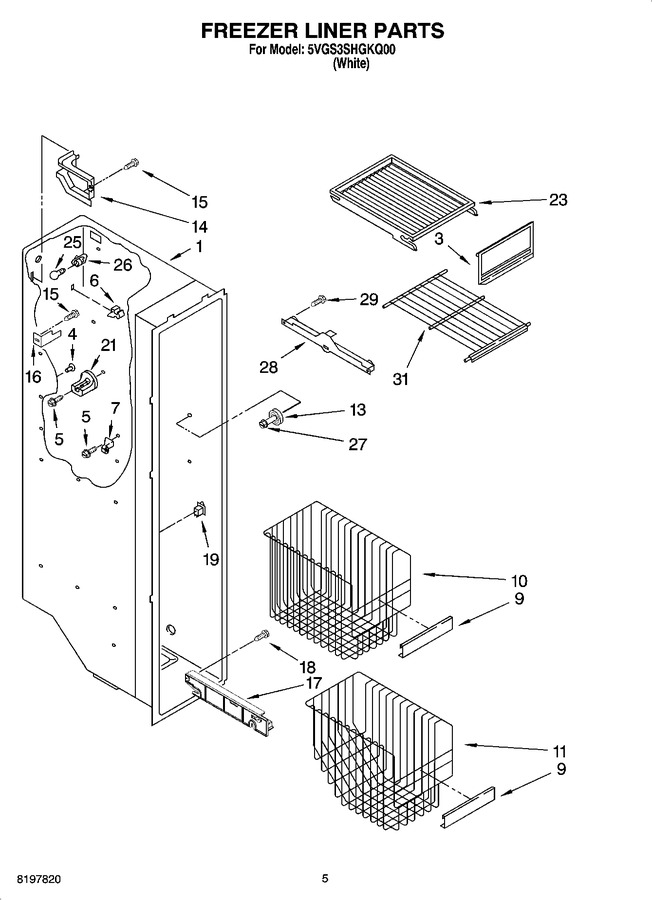

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 69.91
4	2176134		Grommet				$ 5.83
5	W10142289		Screw   (Replaces: 3400893)				$ 9.61
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud		Appelez-nous	-
9	2195904K		Trim, Basket   (Replaces: 2195904)		Appelez-nous	-
10	2181761		Basket, Tall		Appelez-nous	-
11	2181762		Basket, Slope		Appelez-nous	-
13	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
14	2155572		Wiring Cover		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
16	2209674		Bracket, Fill Tube		Appelez-nous	-
17	2261448		Slide, Basket (left Side (2))				$ 46.07
17	2261449		Slide, Basket (right Side (2))				$ 46.07
18	W10759522		Screw   (Replaces: 486298)				$ 8.24
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
21	2196207		Stud, Rear				$ 7.61
23	1115380		Slide, Ice Door		Appelez-nous	-
25	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
27	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	WP2174249K		Shelf   (Replaces: 2174249)				$ 221.75
