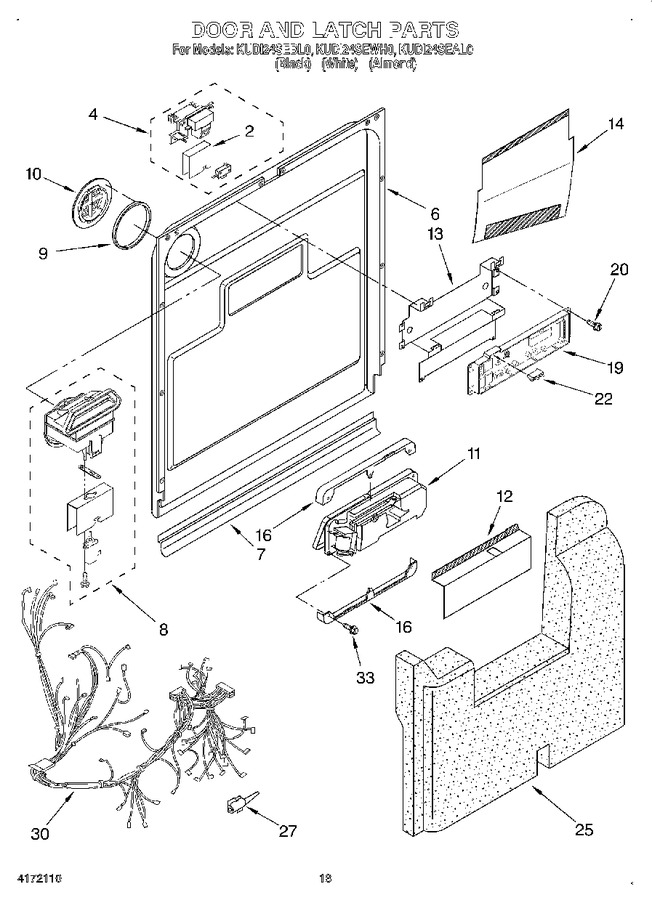

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9743467		Shield, Switch		Appelez-nous	-
4	9743179		Latch Assembly (includes Item 2)		Appelez-nous	-
6	9742625		Inner Door Mastic Assembly (also Includes Items 7, 9 & 10)		Appelez-nous	-
7	4172127		Seal, Door Lower   (Replaces: 9742631)			Immediately	$ 73.51
8	9742770		Vent Assembly (also Order Item 9)		Appelez-nous	-
9	9742782		Gasket, Vent				$ 11.24
10	9742780		Deflector, Vent (also Order Item 9)		Appelez-nous	-
11	WPW10616003		Dispenser, Assembly   (Replaces: 9742629)				$ 285.48
12	9743450		Shield, Dispenser		Appelez-nous	-
13	9742623		Bracket, Controls		Appelez-nous	-
14	9742963		Shield, Control		Appelez-nous	-
15	N/A		Screw		Appelez-nous	-
16	9743486		Bracket, Dispenser (2)		Appelez-nous	-
19	9742617		Control Electronic				$ 358.60
20	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
22	9743451		Fuse Thermal Electronic		Appelez-nous	-
25	9743026		Sound Absorber		Appelez-nous	-
27	3376405		Elbow, Harness				$ 14.02
30	9743462		Wiring Harness Main		Appelez-nous	-
33	3400700		Screw (6)		Appelez-nous	-
