SELECT A DIAGRAM

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional

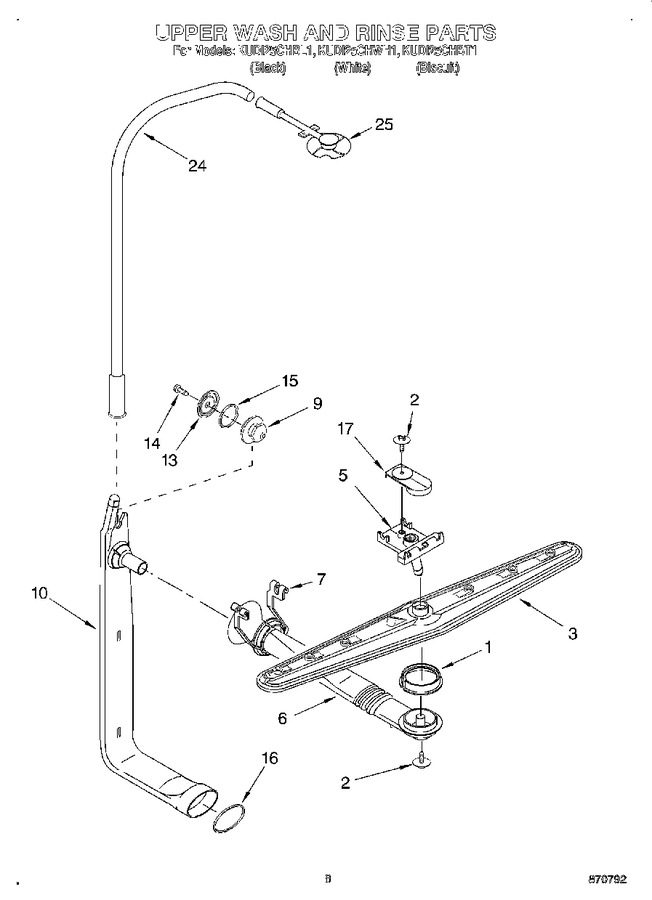

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3376846		Seal, Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
2	WPW10349488		Screw   (Replaces: 3400031)				$ 8.97
3	675808		Sprayarm, Upper (also Order Item 1)   (Replaces: 3378147)			Immediately	$ 57.57
5	WP8539324		Mount, Tiered   (Replaces: 9742994)			Immediately	$ 6.08
6	WP3378144		Tube, Feed   (Replaces: 3378144)			Immediately	$ 70.48
7	WP3378186		Holder, Water Inlet   (Replaces: 3378145)				$ 38.84
9	9743473		Connector (includes Items 13, 14 & 15)		Appelez-nous	-
10	661651		Feed Tube Assembly   (Replaces: 9744135)			Immediately	$ 141.84
13	9743475		Washer		Appelez-nous	-
14	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
15	9743474		Gasket, Connector		Appelez-nous	-
16	9742953		Seal, Tube				$ 18.02
17	WP8268812		Mount, Top Upper Sprayarm   (Replaces: 9743194)				$ 17.54
24	9743958		Tube (3rd Level)				$ 5.84
25	WP3379369		Wash Asm. (3rd Level)   (Replaces: 3379369)			Immediately	$ 66.37

    View Diagram in Separate Window       Print Part List
