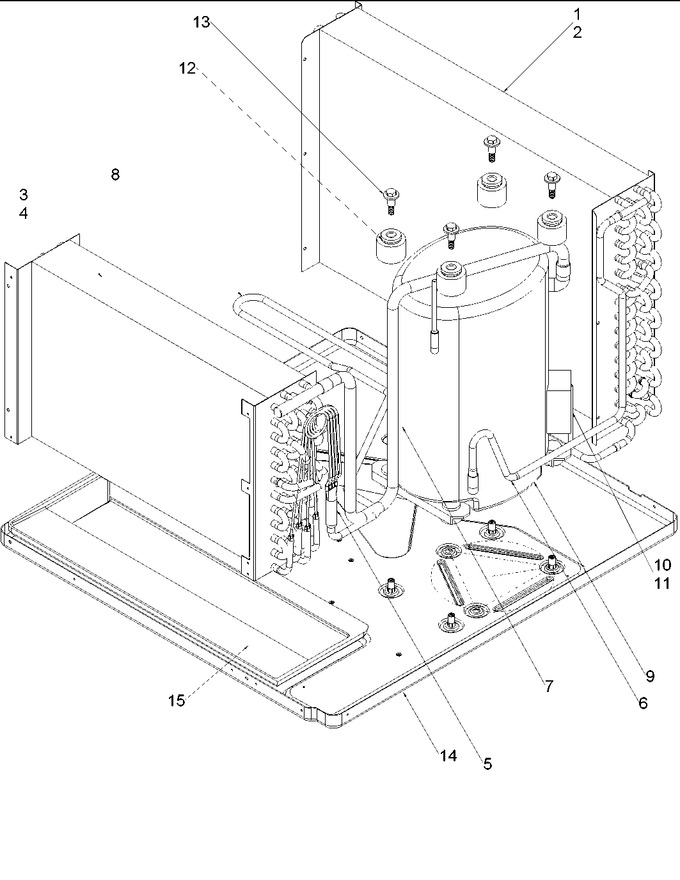

01 - Center Partition Assy And Controls
02 - Evaporator, Condenser And Compressor
03 - Outercase, Curtains And Front Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3096508 | Assy, Cond Coil Tubing |
|
- | |||||
| 3 | 3096019 | Assy, Evap Coil Tubing |
|
- | |||||
| 5 | 3093853 | Assy, Capillary Tube |
|
- | |||||
| 6 | 30936215 | Discharge Line |
|
- | |||||
| 7 | 30936217 | Suction Line |
|
- | |||||
| 8 | 3093836 | Assy, Liquid Line |
|
- | |||||
| 9 | BT9266204 | Compressor |
|
- | |||||
| 10 | BT3068516 | Plug Wire,compressor |
|
- | |||||
| 11 | BT1392311 | Clip, Retainer |
|
- | |||||
| 12 | BT1339500 | Grommet - Comp |
|
- | |||||
| 13 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- | |||||
| 14 | 3050208S | Assy,basepan Service |
|
- | |||||
| 15 | BT3005002 | Pan, Drain (styrofoam Large) |
|
- |
