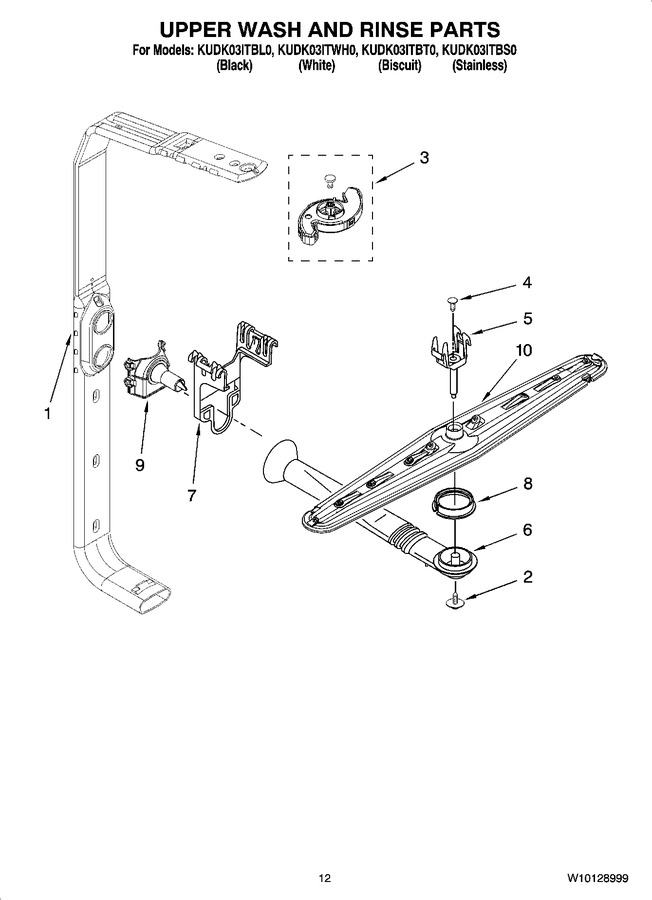

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10077896 | Feed Tube Assembly |
|
$ 72.83 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Sprayarm, 3rd Level (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | 3400920 | Cover, Screw |
|
$ 7.78 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268354) |
|
$ 105.45 | |||||
| 6 | 8268355 | Manifold |
|
$ 44.66 | |||||
| 7 | WP8268349 | Hanger (Replaces: 8268349) |
|
$ 10.93 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | W10077923 | Nozzle-feed |
|
$ 33.02 | |||||
| 10 | WP8535086 | Sprayarm (Replaces: 8535086) |
|
$ 109.96 |
