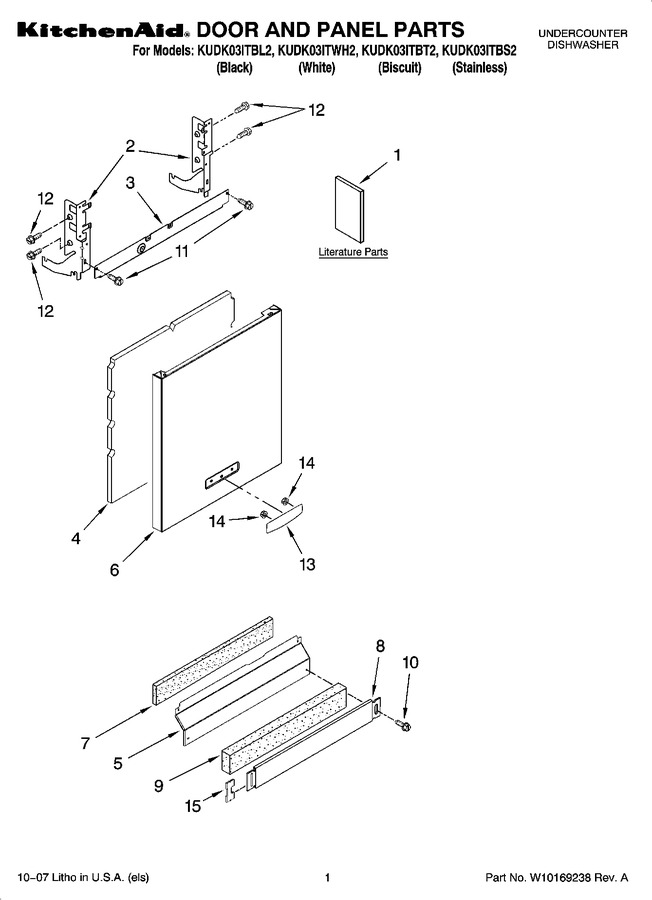

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10084169 Guide, Use & Care Spanish Appelez-nous -
1 W10082651 Tech Sheet Appelez-nous -
1 W10084091 Guide, Use & Care English/french Reference Appelez-nous -
1 W10078153 Instructions, Installation Appelez-nous -
1 W10111124 Energy Guide Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 8564886 Stiffener, Door Appelez-nous -
4 WPW10073520 Insulation, Door   (Replaces: 8542577) Special Order $ 96.23

5 W11763736 Access Panel (includes Item 7) (black)   (Replaces: 8558260) In-Stock Immediately $ 42.25

5 W10871198 Access Panel (includes Item 7) (biscuit)   (Replaces: 8558262) Special Order $ 161.50

5 W11763739 Access Panel (includes Item 7) (white)   (Replaces: 8558261) Special Order $ 42.65

6 W10137620 Panel, Full Front (includes Items 4, 13 & 14) (stainless) Appelez-nous -
6 W10077997 Panel, Full Front (includes Items 4, 13 & 14) (biscuit) Appelez-nous -
6 W10077995 Panel, Full Front (includes Items 4, 13 & 14) (black) Appelez-nous -
6 W10077996 Panel, Full Front (includes Items 4, 13 & 14) (white) Appelez-nous -
7 W10831329 Insulation, Access Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

8 8558254 Toe Panel (includes Items 9 & 15) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Items 9 & 15) (white)   (Replaces: 8558253) Special Order $ 309.39

8 W10871196 Toe Panel (includes Items 9 & 15) (black)   (Replaces: 8558252) Special Order $ 174.04

9 W10831329 Insulation, Toe Panel   (Replaces: W10073550) In-Stock Immediately $ 43.30

10 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

10 3400865 Screw (biscuit) Special Order $ 14.07

10 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

12 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

13 W10021870 Nameplate (white) Special Order $ 128.26

13 W10021850 Nameplate (stainless) Special Order $ 62.01

13 W10021860 Nameplate (black) Special Order $ 109.94

13 W10021880 Nameplate (biscuit) Appelez-nous -
14 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

15 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 11.21
