SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)

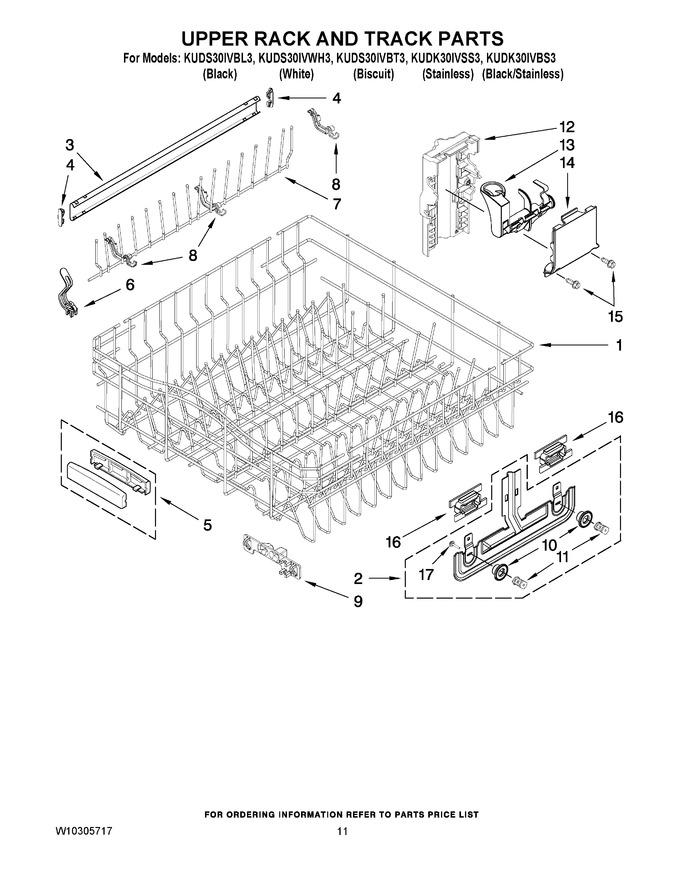

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: W10056270)			Immediately	$ 179.58
2	W10728849		Adjuster Assembly   (Replaces: 8268654)				$ 184.96
3	WP3385089		Track Rack   (Replaces: 3385089)			Immediately	$ 80.00
4	WP8565925		Stop, Track   (Replaces: W10082860)			Immediately	$ 6.87
5	8539110		Handle, Dishrack		Appelez-nous	-
6	WPW10077844		Clip, No Flip   (Replaces: W10077844)			Immediately	$ 11.45
7	W10727426		Tine Row   (Replaces: 8562030)			Immediately	$ 85.10
8	WPW10082853		Clip, Pivot   (Replaces: W10082853)			Immediately	$ 5.40
9	WP8539102		Positioner, Dual   (Replaces: 8539102)				$ 103.88
10	WP3385088		Wheel   (Replaces: 3385088)			Immediately	$ 12.40
11	WP8268703		Axle, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
12	W10728563		Housing, Adjuster   (Replaces: W10082839)				$ 15.87
13	W10077838		Actuator, Adjuster (right Hand)				$ 37.92
13	W10077839		Actuator, Adjuster (left Hand)				$ 38.28
14	W10728561		Cover, Adjuster   (Replaces: W10082840)				$ 20.53
15	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
16	W10728566		Positioner, Arm   (Replaces: W10082834)			Immediately	$ 8.22
17	8281156		Screw				$ 5.83

    View Diagram in Separate Window       Print Part List
