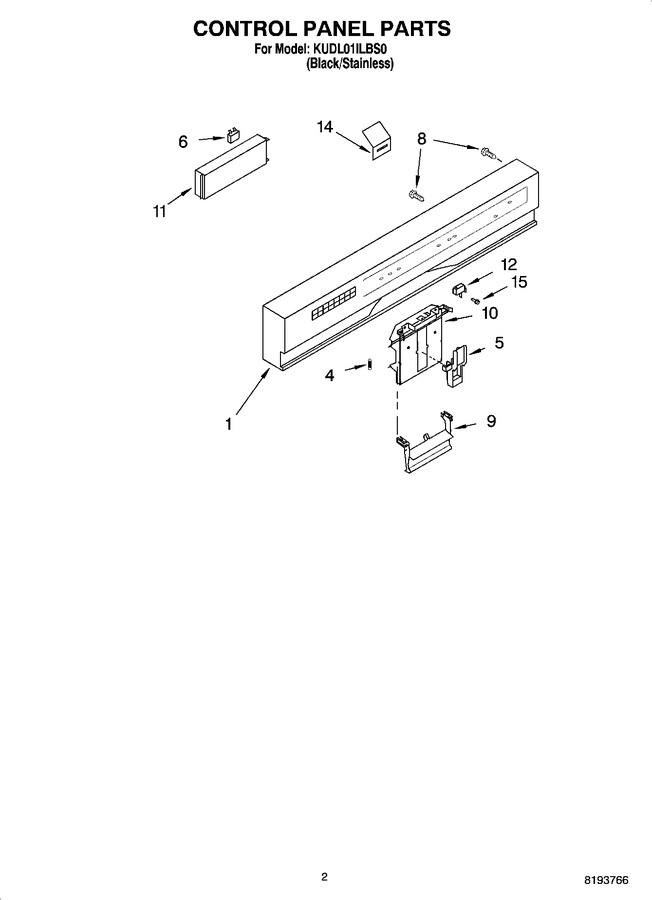

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10757829 | Console Asm. Includes Active Overlay & Insert (Replaces: 8531178) |
|
$ 344.07 | |||||
| 4 | WP8268540 | Spring, Handle (Replaces: 8268540) |
|
Immediately | $ 10.37 | ||||
| 5 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 101.28 | ||||
| 6 | 8193762 | Fuse, Thermal Electronic (Replaces: 8269213) |
|
Immediately | $ 46.17 | ||||
| 8 | WPW10348409 | Screw (6) (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 9 | WP8269117 | Handle, Latch (Replaces: 8269117) |
|
Immediately | $ 102.64 | ||||
| 10 | 8193882 | Bolt, Latch (Replaces: 8524476) |
|
Immediately | $ 114.47 | ||||
| 11 | 8528874 | Control, Electronic |
|
- | |||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 | ||||
| 14 | 8268547 | Shield |
|
- | |||||
| 15 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 |
