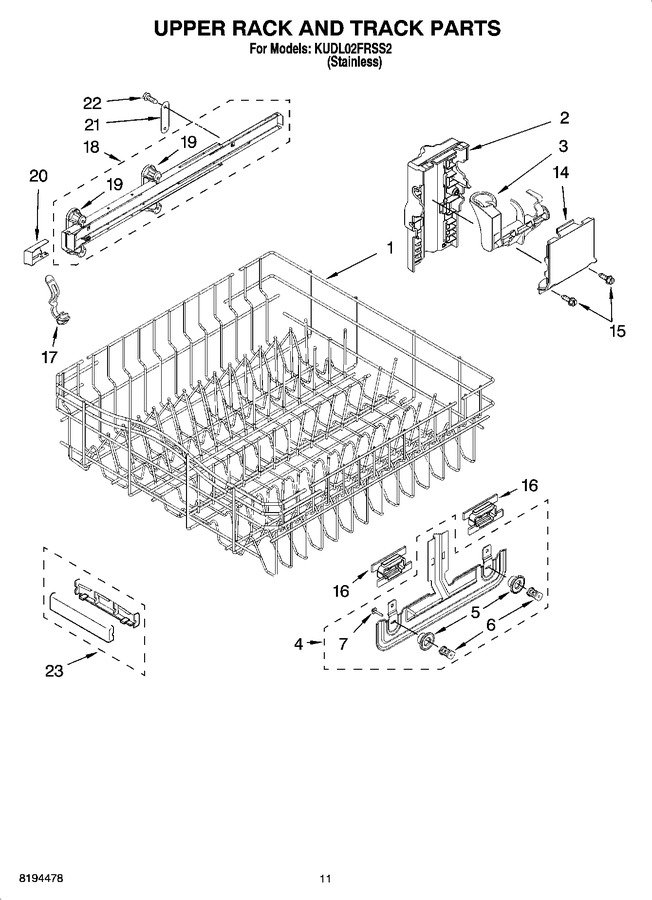

09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: 8539234)			Immediately	$ 179.58
2	8531343		Housing, Adjuster		Appelez-nous	-
3	8531309		Actuator, Adjuster (left Hand)		Appelez-nous	-
3	8531310		Actuator, Adjuster (right Hand)		Appelez-nous	-
4	W10728567		Adjuster Assembly   (Replaces: 8268653)				$ 194.00
5	WP8270138		Wheel   (Replaces: 8270138)			Immediately	$ 11.88
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
7	8281156		Screw				$ 5.83
14	8531345		Cover, Adjuster		Appelez-nous	-
15	WP9741232		Retainer   (Replaces: 9741232)			Immediately	$ 5.07
16	8268704		Positioner, Arm				$ 36.10
17	WP8539101		Clip, No-flip   (Replaces: 8539101)				$ 84.22
18	WPW10247511		Track, Assembly (right Hand)   (Replaces: 8564924)				$ 303.38
18	WPW10247512		Track, Assembly (left Hand (also Order Item 21))   (Replaces: 8564923)				$ 277.64
19	8270137		Mount, Track (also Order Item 21)				$ 6.50
20	8573953		Stop, Track (left)				$ 5.84
20	WP8573954		Stop, Track (right)   (Replaces: 8573954)				$ 7.30
21	WP9743002		Gasket, Bracket Mounting   (Replaces: 9743002)			Immediately	$ 10.04
22	WPW10348407		Screw (8)   (Replaces: 3400072)				$ 8.06
23	8539110		Handle, Dishrack		Appelez-nous	-
