SELECT A DIAGRAM

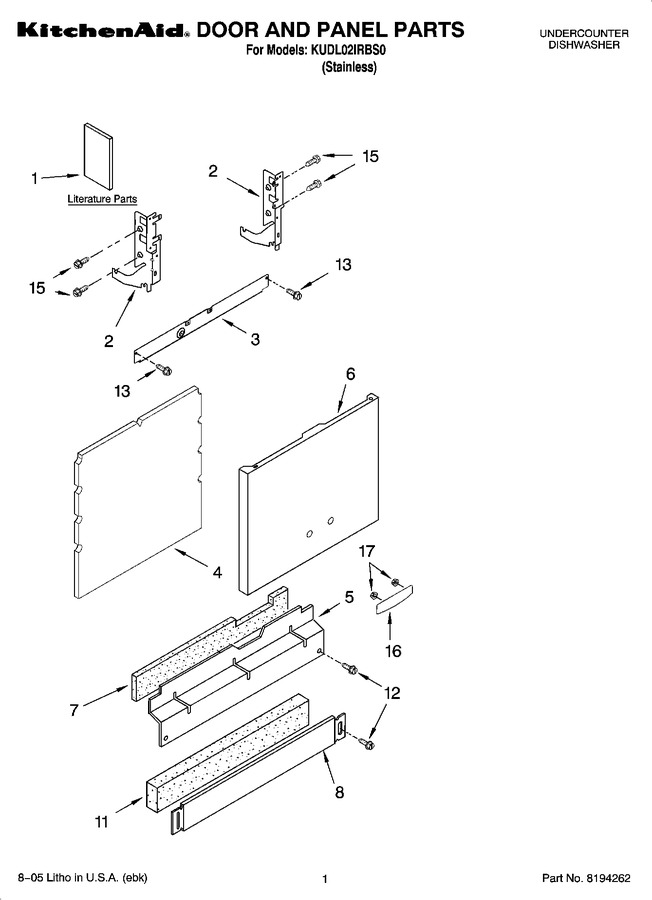

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8572216		Tech Sheet		Appelez-nous	-
1	8573157		Instructions, Installation		Appelez-nous	-
1	8572292		Energy Guide		Appelez-nous	-
1	8572289		Guide, Use & Care		Appelez-nous	-
1	8572286		Guide, Consumer Reference		Appelez-nous	-
1	8564958		Dvd, Use & Care		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8564886		Stiffener, Door		Appelez-nous	-
4	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 96.23
5	W11763736		Access Panel (black)   (Replaces: 8543834)			Immediately	$ 42.25
6	8270088		Panel, Full Front (includes Items 16 & 17) (stainless)		Appelez-nous	-
7	W10831329		Insulation, Access Panel   (Replaces: 8542578)			Immediately	$ 43.30
8	W10871196		Toe Panel (includes Item 11) (black)   (Replaces: 8270026)				$ 174.04
11	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26
16	2005292		Nameplate (black)				$ 52.20
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24

    View Diagram in Separate Window       Print Part List
