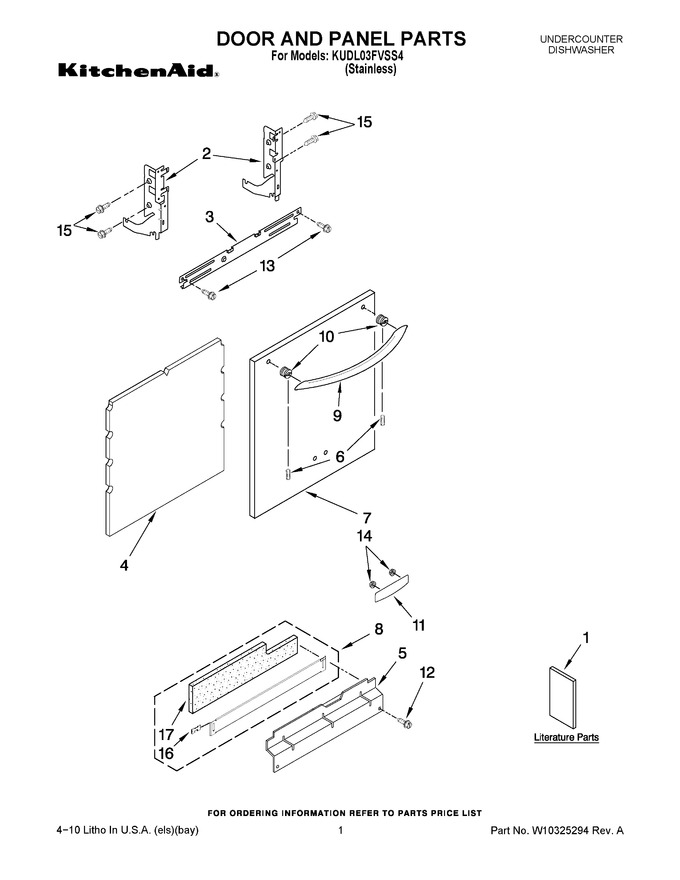

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10056407 | Instructions,installation |
|
- | |||||
| 1 | W10247456 | Energy Guide |
|
- | |||||
| 1 | W10300234 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10300233 | Guide, Use & Care (english/french) |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 6 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 7 | W10137623 | Panel, Front (includes Items 4, 10, 11 & 14) (stainless) |
|
$ 242.05 | |||||
| 8 | W10871196 | Toe Panel (black) (includes Items 16 & 17)) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | W10257145 | Handle (includes Item 6) (stainless) |
|
$ 55.36 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 11 | W10021850 | Nameplate (stainless) |
|
$ 62.01 | |||||
| 12 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 11.24 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 17 | W10831329 | Insulation Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 |
