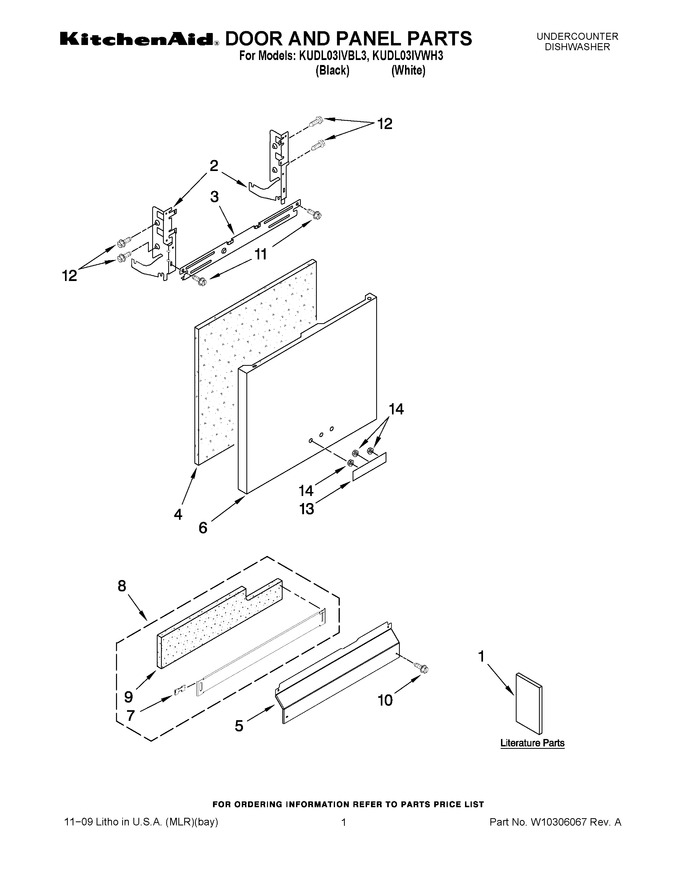

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10078153 | Instructions, Installation |
|
- | |||||
| 1 | W10247456 | Energy Guide |
|
- | |||||
| 1 | W10193740 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10193741 | Guide, Use & Care Spanish |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 170.94 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 6 | W10077995 | Panel, Full Front (includes Items 4, 13 & 14) (black) |
|
- | |||||
| 6 | W10077996 | Panel, Full Front (includes Items 4, 13 & 14) (white) |
|
- | |||||
| 7 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 8 | W10799406 | Toe Panel (includes Items 7 & 9) (white) (Replaces: W10205337) |
|
$ 170.13 | |||||
| 8 | W10871196 | Toe Panel (includes Items 7 & 9) (black) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | W10831329 | Insulation Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 10 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 8.10 | |||||
| 10 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10021870 | Nameplate (white) |
|
$ 128.26 | |||||
| 13 | W10021860 | Nameplate (black) |
|
$ 109.94 | |||||
| 14 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 11.24 |
