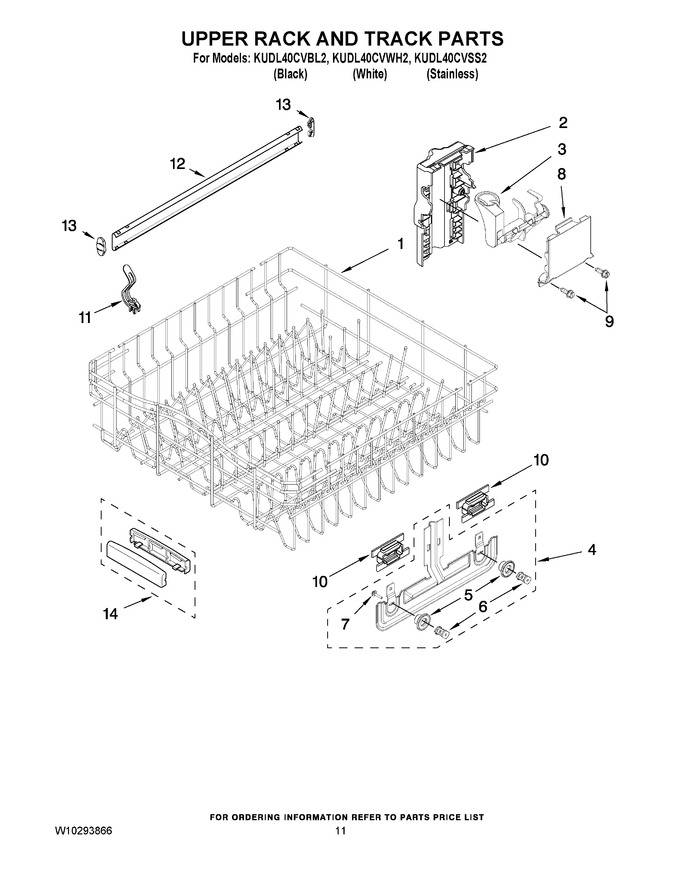

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: 8539233) |
|
Immediately | $ 179.58 | ||||
| 2 | W10728563 | Housing, Adjuster (Replaces: W10082839) |
|
$ 15.87 | |||||
| 3 | W10077839 | Actuator, Adjuster (left Hand) |
|
$ 38.28 | |||||
| 3 | W10077838 | Actuator, Adjuster (right Hand) |
|
$ 37.92 | |||||
| 4 | W10728849 | Adjuster Assembly (Replaces: 8268654) |
|
$ 184.96 | |||||
| 5 | WP3385088 | Wheel (Replaces: 3385088) |
|
Immediately | $ 12.40 | ||||
| 6 | WP8268703 | Axel, Adjuster (Replaces: 8268703) |
|
Immediately | $ 11.28 | ||||
| 7 | 8281156 | Screw |
|
$ 5.83 | |||||
| 8 | W10728561 | Cover, Adjuster (Replaces: W10082840) |
|
$ 20.53 | |||||
| 9 | WP9741232 | Retainer (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 10 | W10728566 | Positioner, Arm (Replaces: W10082834) |
|
Immediately | $ 8.22 | ||||
| 11 | WPW10077844 | Clip, No Flip (Replaces: W10077844) |
|
Immediately | $ 11.45 | ||||
| 12 | WP3385089 | Track Assembly (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 13 | WP8565925 | Stop, Track (Replaces: W10082860) |
|
Immediately | $ 6.87 | ||||
| 14 | 8539110 | Handle, Dishrack |
|
- |
