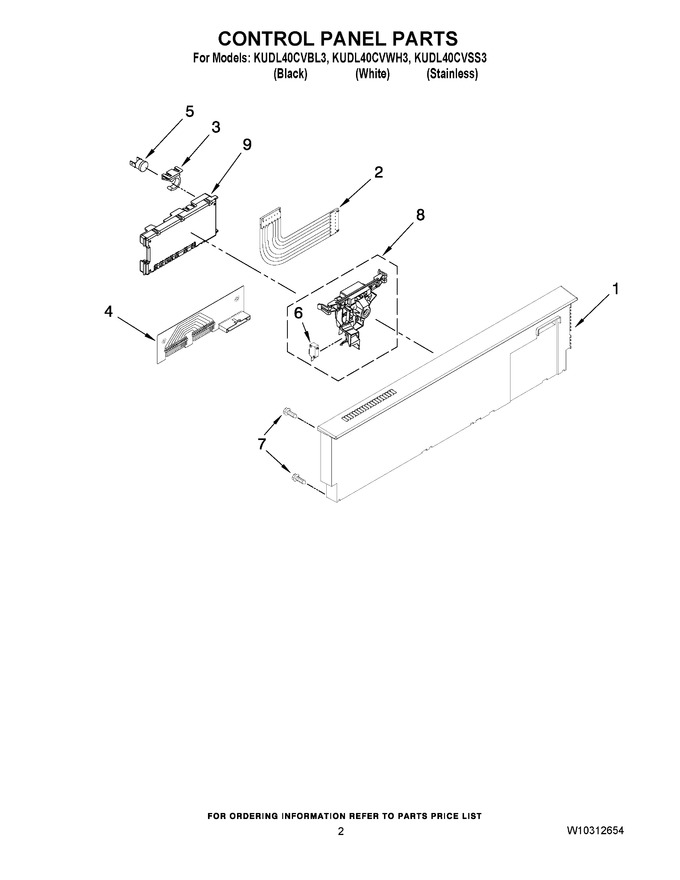

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8572354 | Console Assembly (black) (Replaces: W10249991) |
|
$ 400.64 | |||||
| 1 | W10249992 | Console Assembly (white) |
|
- | |||||
| 1 | WPW10084124 | Console Assembly (midnight Grey) (Replaces: W10249993) |
|
$ 419.68 | |||||
| 2 | 8531877 | Cable, Ribbon |
|
$ 66.48 | |||||
| 3 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 4 | WP8531873 | Board, Interconnect (Replaces: 8531873) |
|
Immediately | $ 190.07 | ||||
| 5 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 6 | W10255029 | Switch, Door |
|
- | |||||
| 7 | WPW10348413 | Screw (Replaces: 3400815) |
|
Immediately | $ 8.41 | ||||
| 8 | WPW10404412 | Latch Assembly (Replaces: W10077360) |
|
Immediately | $ 85.50 | ||||
| 9 | WPW10285179 | Control, Electronic (Replaces: W10208674) |
|
Immediately | $ 316.68 |
