Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8524518 Literature Parts (french) Appelez-nous -
1 LIT8524480 Literature Parts (instructions, Installation) Appelez-nous -
1 LIT8524568 Literature Parts (energy Guide) Appelez-nous -
1 LIT8270148 Literature Parts (guide, Use & Care Tech Sheet) Appelez-nous -
1 LIT8524517 Literature Parts (english) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8269012) In-Stock Immediately $ 130.98

2 W11806608 Arm, Hinge (right)   (Replaces: 8269011) In-Stock Immediately $ 130.98

3 8268983 Stiffener, Door Special Order $ 38.77

4 W11113792 Panel Front   (Replaces: 8524576) In-Stock Immediately $ 332.61

5 W11763739 Access Panel (white)   (Replaces: 8268995) Special Order $ 38.79

5 W10871198 Access Panel (biscuit)   (Replaces: 8268996) Special Order $ 147.59

5 W11763736 Access Panel (black)   (Replaces: 8268994) In-Stock Immediately $ 38.79

6 9744437 Plate, Backing Special Order $ 20.09

7 8524452 Panel, Full Front (white) Appelez-nous -
7 8524453 Panel, Full Front (biscuit) Appelez-nous -
7 8270189 Panel, Full Front (stainless) Appelez-nous -
7 8524451 Panel, Full Front (black) Appelez-nous -
8 W10871196 Toe Panel (black)   (Replaces: 8268999) Special Order $ 165.75

8 WPW10586591 Toe Panel (white)   (Replaces: 8269000) Special Order $ 309.39

8 8269001 Toe Panel (biscuit) Appelez-nous -
9 9744438 Handle (stainless) Appelez-nous -
9 8524409 Handle (biscuit) Appelez-nous -
9 8524408 Handle (white) Appelez-nous -
9 8524407 Handle (black) Special Order $ 77.85

10 3400067 Screw Special Order $ 35.58

12 3400865 Screw (biscuit) Special Order $ 13.40

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 7.75

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 7.82


    View Diagram in Separate Window     Print Icon   Print Part List

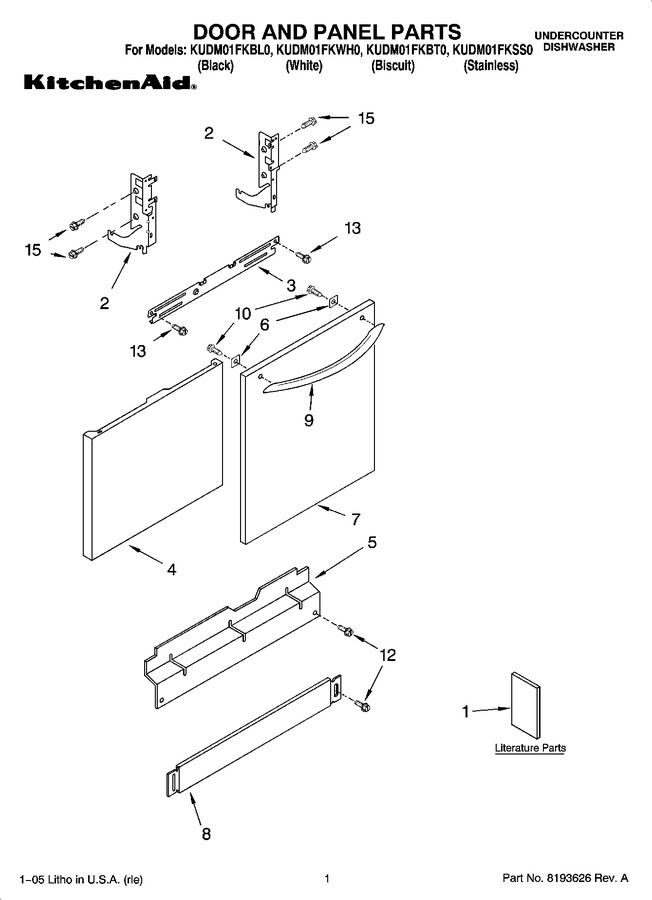

Diagram for KUDM01FKWH0
