SELECT A DIAGRAM

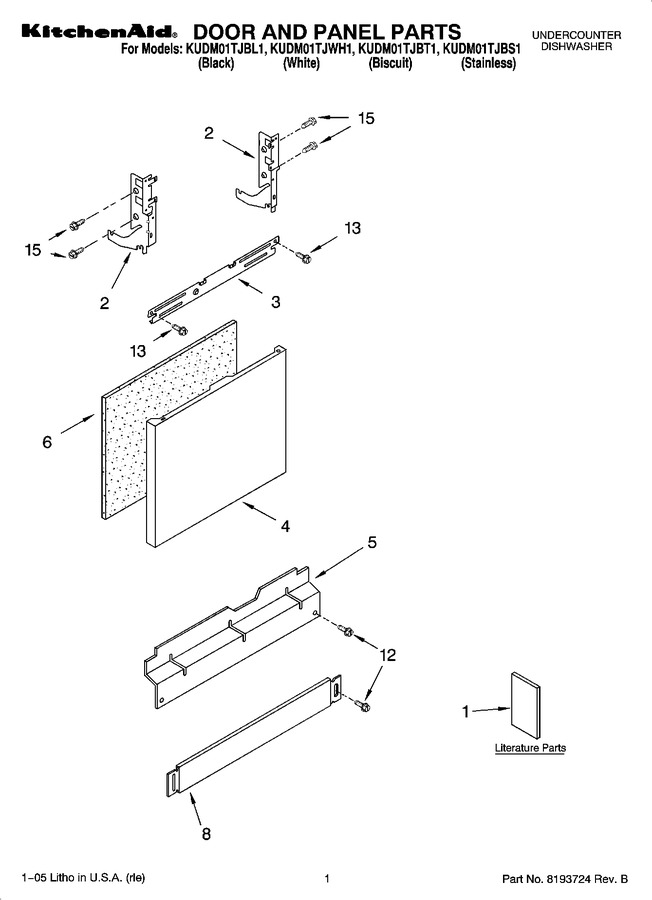

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Upper Wash And Rinse Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8533399		Literature Parts (english/french)		Appelez-nous	-
1	LIT8524480		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8531624		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT8531050		Literature Parts (guide, Use & Care Tech Sheet)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	8269838		Panel Front (white)		Appelez-nous	-
4	8269840		Panel Front (biscuit)		Appelez-nous	-
4	8270069		Panel Front (stainless)		Appelez-nous	-
4	8269837		Panel Front (black)				$ 119.99
5	W11763736		Access Panel (black)   (Replaces: 8268994)			Immediately	$ 38.79
5	W10871198		Access Panel (biscuit)   (Replaces: 8268996)				$ 147.59
5	W11763739		Access Panel (white)   (Replaces: 8268995)				$ 38.79
6	WPW10073520		Insulation, Door   (Replaces: 8268580)				$ 91.65
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 165.75
8	WPW10586591		Toe Panel (white)   (Replaces: 8269000)				$ 309.39
8	8269001		Toe Panel (biscuit)		Appelez-nous	-
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
12	3400865		Screw (biscuit)				$ 13.40
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 7.82
