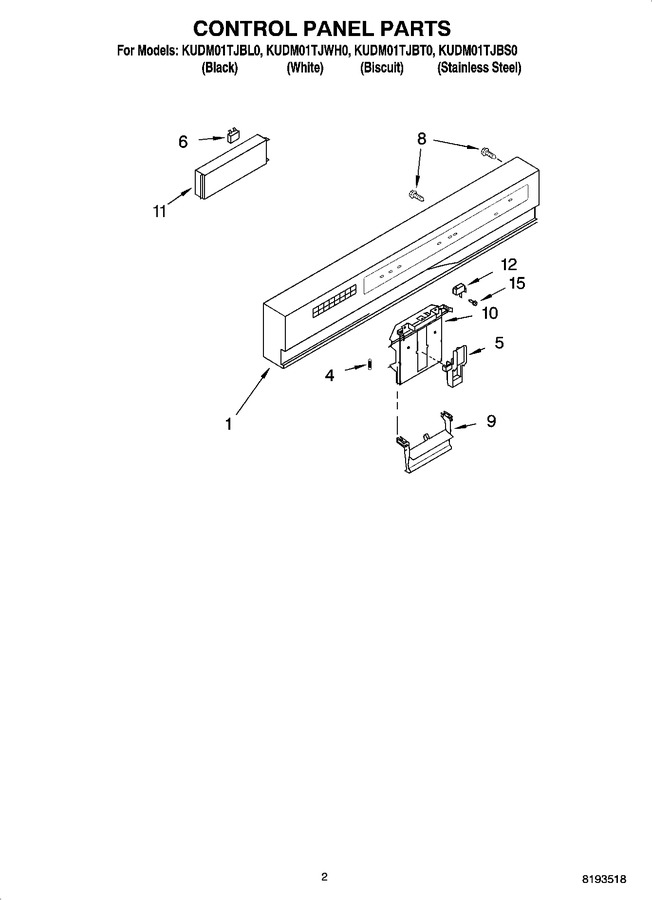

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Upper Wash And Rinse Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8269943		Console Asm. Includes Active Overlay & Insert (white)		Appelez-nous	-
1	8269944		Console Asm. Includes Active Overlay & Insert (biscuit)		Appelez-nous	-
1	8269942		Console Asm. Includes Active Overlay & Insert (black)		Appelez-nous	-
4	WP8268540		Spring, Handle   (Replaces: 8268540)			Immediately	$ 10.37
5	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
6	8193762		Fuse, Thermal Electronic   (Replaces: 8269213)			Immediately	$ 46.17
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP8269117		Handle, Latch (black)   (Replaces: 8269117)			Immediately	$ 102.64
9	WP8269117		Handle, Latch (biscuit)   (Replaces: 8269168)			Immediately	$ 102.64
9	WP8269117		Handle, Latch (white)   (Replaces: 8269167)			Immediately	$ 102.64
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
11	8528172		Control, Electronic		Appelez-nous	-
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
15	3400409		Screw		Appelez-nous	-
