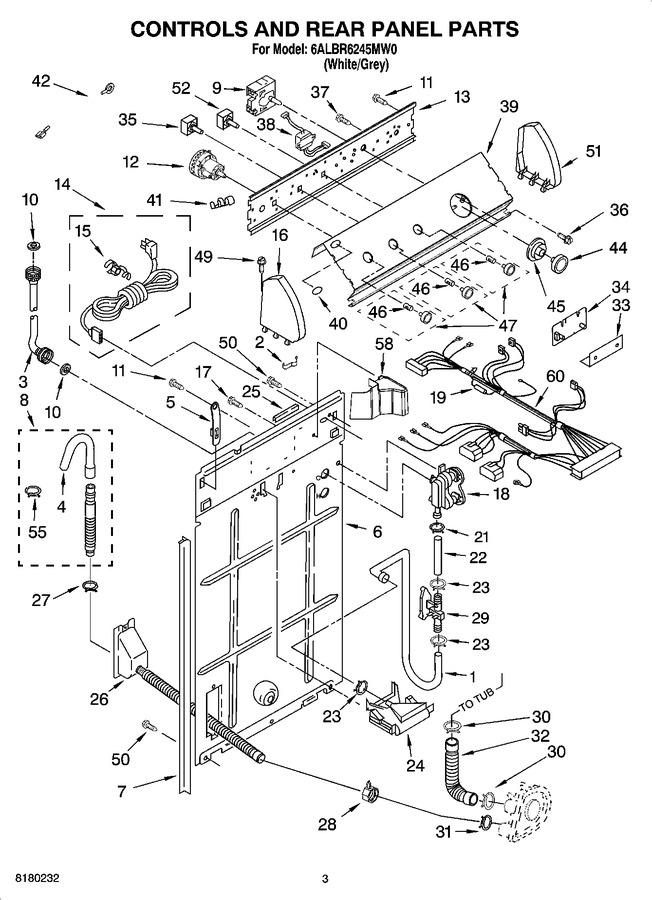

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts


10 - Miscellaneous Parts - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3363509		Hose, Sensor (lower)		Appelez-nous	-
2	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3366916)				$ 81.86
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 8.17
6	8318407		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
9	3954170		Timer, Control (60 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	WP3357450		Washer, Water Inlet Hose (4)   (Replaces: 3357450)				$ 11.56
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 91.84
13	3948814		Bracket, Control		Appelez-nous	-
14	8541728		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 302.44
19	WPW10111181		Fuse (in Harness)   (Replaces: 3951198)				$ 34.81
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
22	3363516		Hose, Sensor (upper)		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 75.28
25	303294		Edge Protector		Appelez-nous	-
26	WPW10358151		Assembly-drain Hose   (Replaces: 8317959)				$ 111.23
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	3976395		Clamp, Hose				$ 11.96
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub (includes 30)   (Replaces: 3951449)			Immediately	$ 28.99
33	8316039		Shield, Atc		Appelez-nous	-
34	WPW10110247		Control, Atc   (Replaces: 3407159)				$ 135.91
35	WPW10168262		Switch, Water Temperature   (Replaces: 3949187)				$ 136.25
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 8.81
37	3179795		Screw, Ground		Appelez-nous	-
38	3407160		Transformer		Appelez-nous	-
39	8539600		Panel, Console (includes Item 40)		Appelez-nous	-
40	3955775		Medallion		Appelez-nous	-
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
42	3398893		Wire, Ground		Appelez-nous	-
44	WP8538949		Knob, Timer   (Replaces: 8538949)				$ 61.97
45	WP8538955		Dial, Timer   (Replaces: 8538955)				$ 55.68
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
47	WP8538957		Knob, Control   (Replaces: 8538957)				$ 58.53
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	8271363		Cap, End (r.h.)		Appelez-nous	-
52	3950353		Switch, Rotary		Appelez-nous	-
55	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 8.19
58	8314879		Shield, Inlet Valve		Appelez-nous	-
60	3956712		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
