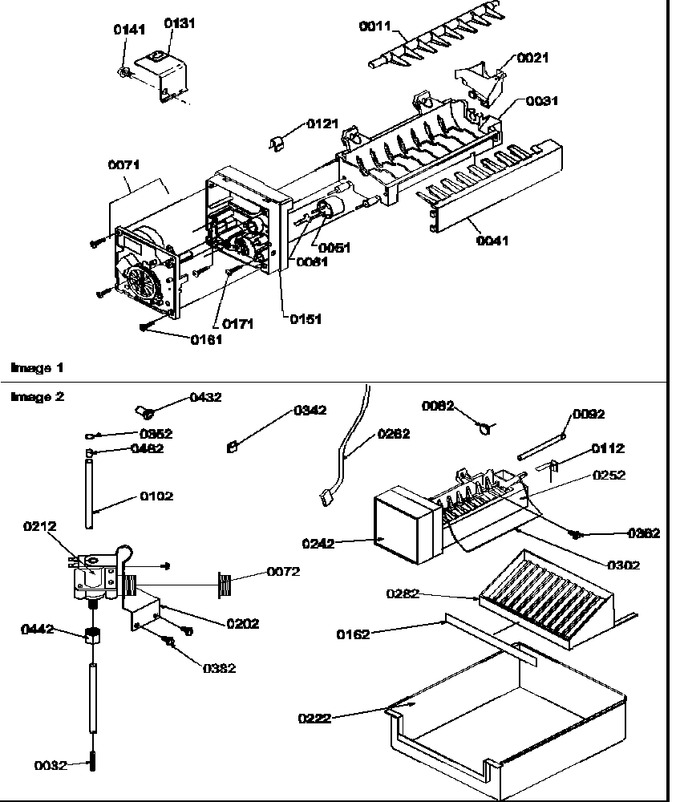

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 21 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 53.75 | |||||
| 31 | Y00000000 | See Note Mold And Heater Assembly -- (order D7824705 Ice Maker) |
|
- | |||||
| 32 | A1055101 | Spring, Antikink |
|
- | |||||
| 41 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 51 | Y00000000 | See Note Thermostat -- (order D7824705 Ice Maker) |
|
- | |||||
| 61 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.60 | |||||
| 71 | Y00000000 | See Note Module And Motor Assembly -- (order D7824705 Ice Maker) |
|
- | |||||
| 72 | NC2098LF | Coupling (Replaces: 10244903) |
|
$ 24.74 | |||||
| 82 | A3124301 | Plug |
|
- | |||||
| 92 | A3127412 | Ext. Fill Tube |
|
- | |||||
| 102 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 112 | B5720301 | Clip |
|
- | |||||
| 121 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 11.10 | |||||
| 131 | WP2256087 | Brkt, Ice Maker (Replaces: B8391803) |
|
$ 97.65 | |||||
| 141 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 151 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 161 | R0186041 | Screw |
|
- | |||||
| 162 | C8986123 | Insert, Juice Rack |
|
- | |||||
| 171 | R0186040 | Screw |
|
- | |||||
| 202 | 10496302 | Brkt, Water Valve |
|
- | |||||
| 212 | 4318047 | Valve-water K (Replaces: D7712603) |
|
Immediately | $ 74.09 | ||||
| 222 | D7806201 | Pan, Ice |
|
- | |||||
| 242 | D7820401 | Cover Im |
|
- | |||||
| 252 | D7824706Q | Ice Maker (Replaces: D7824705) |
|
Immediately | $ 167.35 | ||||
| 262 | D7826301 | Harness, Mod. Im |
|
- | |||||
| 282 | D7839703 | Rack, Juice V |
|
- | |||||
| 302 | Y10901401 | Arm, I.m. Shut-off |
|
- | |||||
| 342 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 8.17 | |||||
| 352 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 362 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 382 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 432 | M0560005 | Support |
|
- | |||||
| 442 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 482 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| NI | 10527025 | Instr,install(ic4r) |
|
- | |||||
| NI | M0211116 | Screw, Sm |
|
- | |||||
| NI | M0108005 | Clamp, Tube (.250) |
|
- | |||||
| NI | M0311301 | Plug Button |
|
- | |||||
| NI | 10834701 | Label, Im |
|
- | |||||
| NI | A3036901 | Label Warranty |
|
- | |||||
| NI | 10549601 | Label, Caution (ice Maker) |
|
- |
