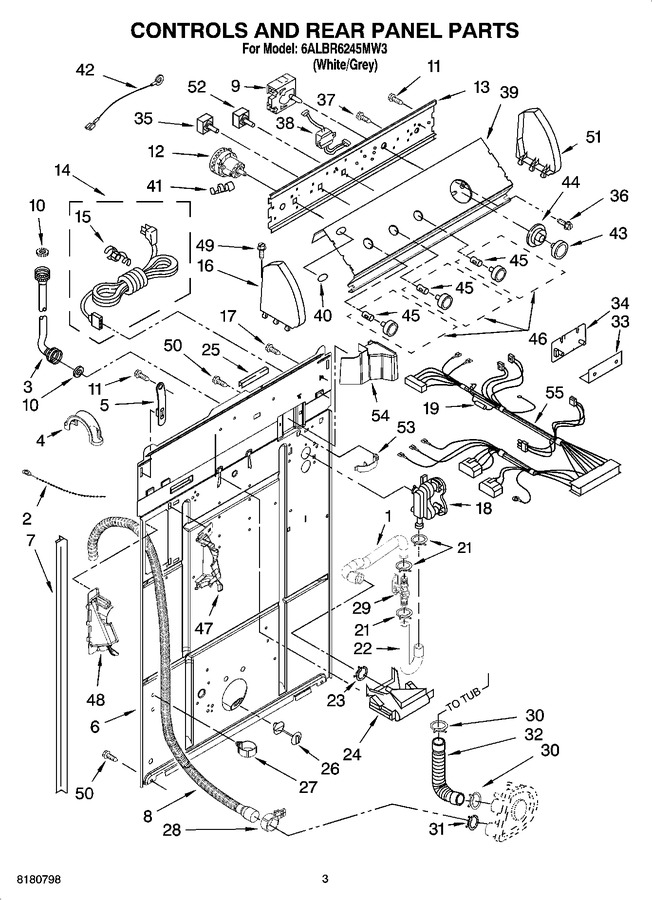

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3363516 | Hose, Sensor (upper) |
|
- | |||||
| 2 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 3 | WPW10489643 | Hose, Water Inlet (2) (Replaces: 3366916) |
|
$ 81.86 | |||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | 8541686 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 27 & 28) (Replaces: 8559374) |
|
Immediately | $ 67.38 | ||||
| 9 | 3954170 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | WP16123 | Washer, Water Inlet Hose (4) (Replaces: 3976300) |
|
$ 8.16 | |||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | W10335056 | Switch, Water Level (Replaces: 3366846) |
|
Immediately | $ 91.84 | ||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | 8559417 | Cord, Power |
|
- | |||||
| 15 | 8559337 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 302.44 | |||||
| 19 | WPW10111181 | Fuse (in Harness) (Replaces: 3951198) |
|
$ 34.81 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | 3363509 | Hose, Sensor (lower) |
|
- | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 29 | 3352282 | Sensor, Inline |
|
$ 66.68 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 8316039 | Shield, Atc |
|
- | |||||
| 34 | WPW10110247 | Control, Atc (Replaces: 3407159) |
|
$ 135.91 | |||||
| 35 | WPW10168262 | Switch, Water Temperature (Replaces: 3949187) |
|
$ 136.25 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | 3400073 | Screw, Ground |
|
- | |||||
| 38 | 3407160 | Transformer |
|
- | |||||
| 39 | 8546338 | Panel, Console (includes Item 40) |
|
- | |||||
| 40 | 3955775 | Medallion |
|
- | |||||
| 41 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 11.37 | |||||
| 42 | 3398893 | Wire, Ground |
|
- | |||||
| 43 | WP8538949 | Knob, Timer (Replaces: 8538949) |
|
$ 61.97 | |||||
| 44 | WP8538955 | Dial, Timer (Replaces: 8538955) |
|
$ 55.68 | |||||
| 45 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 46 | WP8538957 | Knob, Control (Replaces: 8538957) |
|
$ 58.53 | |||||
| 47 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 48 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 52 | 3950353 | Switch, Rotary |
|
- | |||||
| 53 | 3349557 | Retainer, Harness |
|
- | |||||
| 54 | 8314879 | Shield, Inlet Valve |
|
- | |||||
| 55 | 3956712 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
