Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9741999 Control, Overfill Assembly (also Order Item 14) Appelez-nous -
2 9742727 Hose, Inlet Special Order $ 40.94

3 9742783 Water Inlet Assembly (includes Items 4 & 5) Appelez-nous -
4 9742787 Gasket Special Order $ 5.83

5 9742786 Bezel, Inlet Appelez-nous -
6 WP596669 Clamp, Hose   (Replaces: 301958) In-Stock Immediately $ 8.82

7 9743559 Fill Valve Assembly Appelez-nous -
8 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 4159424 Screw Appelez-nous -
11 9743413 Switch, Overfill Control Special Order $ 32.34

12 9741997 Standpipe, Overfill Special Order $ 35.05

13 WP8531743 Gasket, Flat   (Replaces: 4161670) In-Stock Immediately $ 47.27

14 WP9741998 Nut, Standpipe   (Replaces: 9741998) Special Order $ 7.97

15 WP9741998 Float & Retainer Assembly   (Replaces: 9741998) Special Order $ 7.97

16 4171116 Lever, Overflow Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

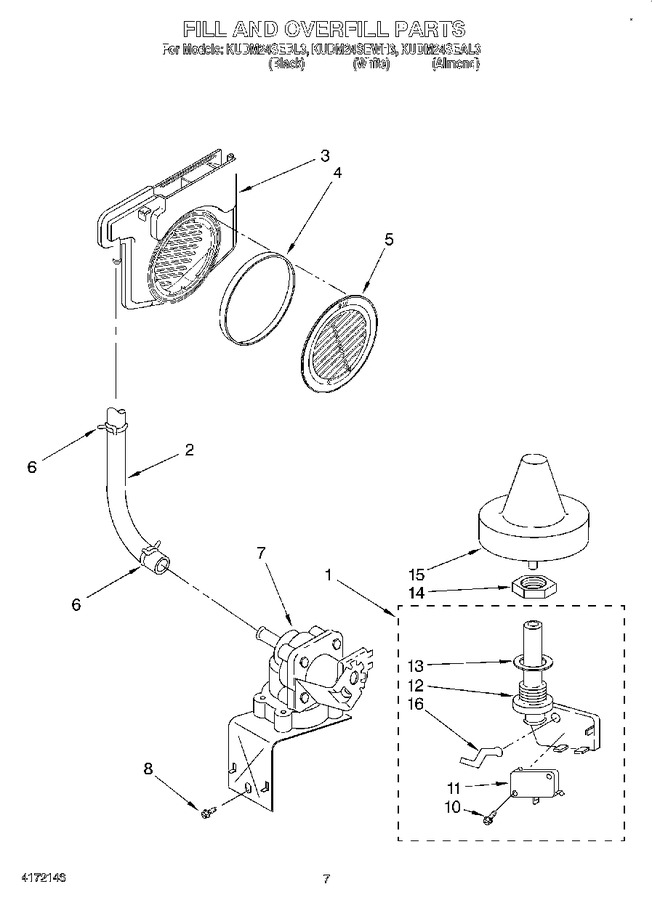

Diagram for KUDM24SEAL3
