Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT3948875 Literature Parts (installation Instructions) Appelez-nous -
1 LIT8316431 Literature Parts (energy Guide) Appelez-nous -
1 LIT3954171 Literature Parts (wiring Diagram) Appelez-nous -
1 LIT3951076 Literature Parts (use & Care Guide) Appelez-nous -
2 8271378 Top Appelez-nous -
3 WP62750 Spacer, Cabinet To Top (4)   (Replaces: 62750) In-Stock Immediately $ 8.07

4 WP357213 Nut, Push-in (2)   (Replaces: 357213) Special Order $ 7.76

5 63424 Cabinet   (Replaces: 3950968) Special Order $ 388.52

6 WP62780 Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780) In-Stock Immediately $ 8.19

7 W10080180 Nut, Hex   (Replaces: 3400901) Special Order $ 14.15

8 WP3356311 Screw & Washer, Lid Switch (2)   (Replaces: 3356311) Special Order $ 8.23

9 WP3351614 Screw, 10-24 X 3/8   (Replaces: 3351614) In-Stock Immediately $ 7.30

10 3950994 Shield, Lid Switch Appelez-nous -
11 WP3950298 Switch, Lid   (Replaces: 3950298) Special Order $ 125.94

12 3976348 Sound Dampener, Cabinet (3) Special Order $ 37.92

13 WPW10119828 Screw, Lid Hinge Mounting (4)   (Replaces: 3351355) In-Stock Immediately $ 7.55

14 WP308685 Screw,10-16 X 1/2   (Replaces: 3357011) In-Stock Immediately $ 7.87

15 WP54584 Hinge, Lid (l.h.)   (Replaces: 54584) Special Order $ 35.50

16 WP54583 Hinge, Lid (r.h.)   (Replaces: 54583) Special Order $ 31.04

17 19119 Bumper, Lid Hinge Special Order $ 5.75

18 WP21258 Bearing, Lid Hinge (2)   (Replaces: 21258) Special Order $ 8.01

19 3361402 Lid Appelez-nous -
20 WP358684 Strike, Lid Switch   (Replaces: 357913) In-Stock Immediately $ 8.05

22 WP9724509 Bumper, Lid (2)   (Replaces: 9724509) In-Stock Immediately $ 8.33

28 WP3390631 Screw, 10-16 X 3/8 (5)   (Replaces: 3390631) Special Order $ 8.25

31 WP90016 Clip   (Replaces: 90016) Special Order $ 11.89

32 WP3362952 Dispenser, Bleach   (Replaces: 3362952) In-Stock Immediately $ 12.09

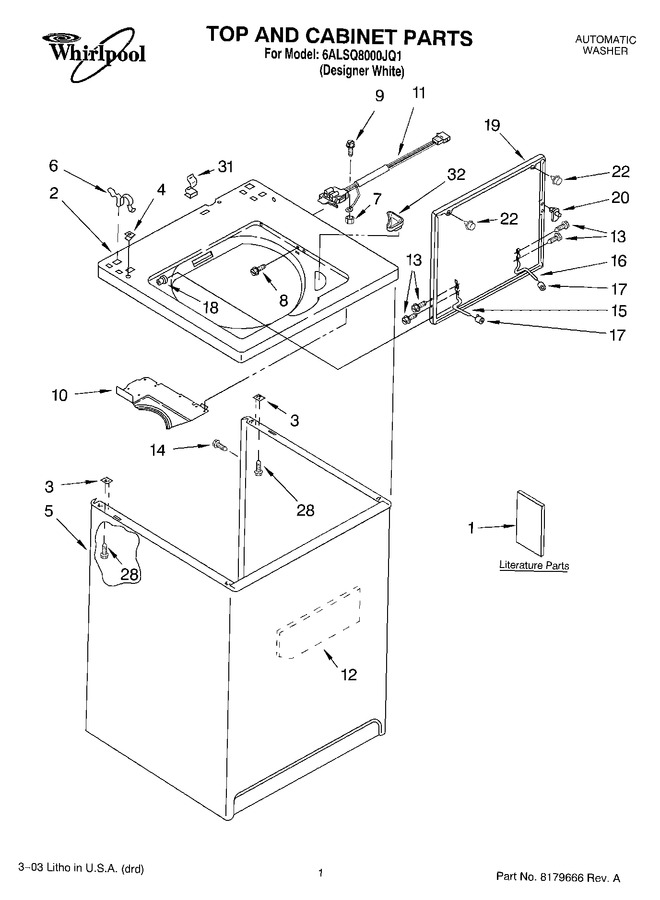

    View Diagram in Separate Window     Print Icon   Print Part List
