SELECT A DIAGRAM

01 - Door And Panel


02 - Control Panel


03 - Door And Latch

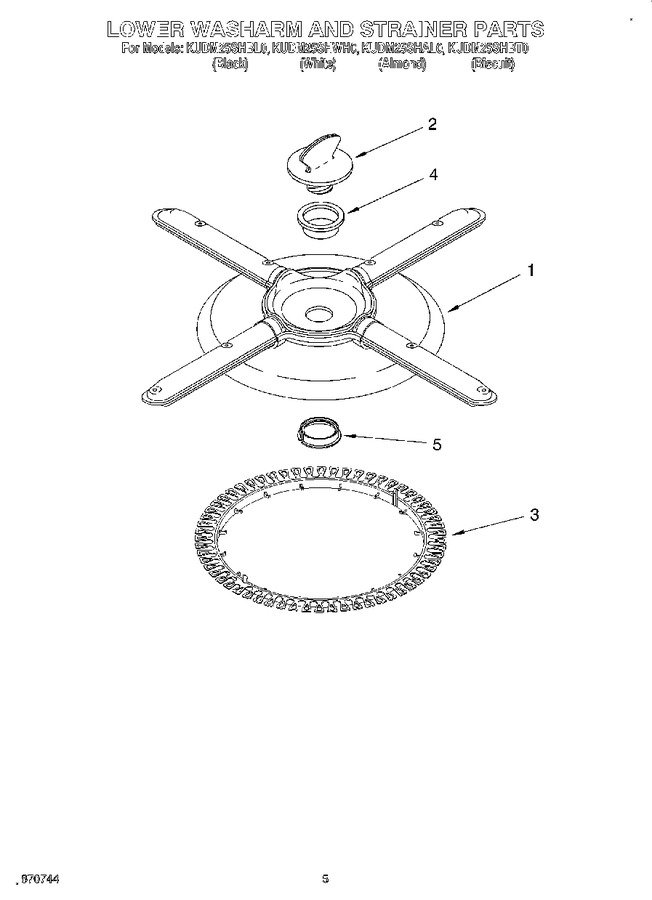

04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9742947		Wash Arm Assembly				$ 107.09
2	WP9742945		Nut, Washarm   (Replaces: 9742945)			Immediately	$ 5.93
3	9742646		Strainer (coarse)		Appelez-nous	-
4	WP9742946		Bearing, Radial   (Replaces: 9742946)			Immediately	$ 26.80
5	WP3376846		Seal, Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
