SELECT A DIAGRAM

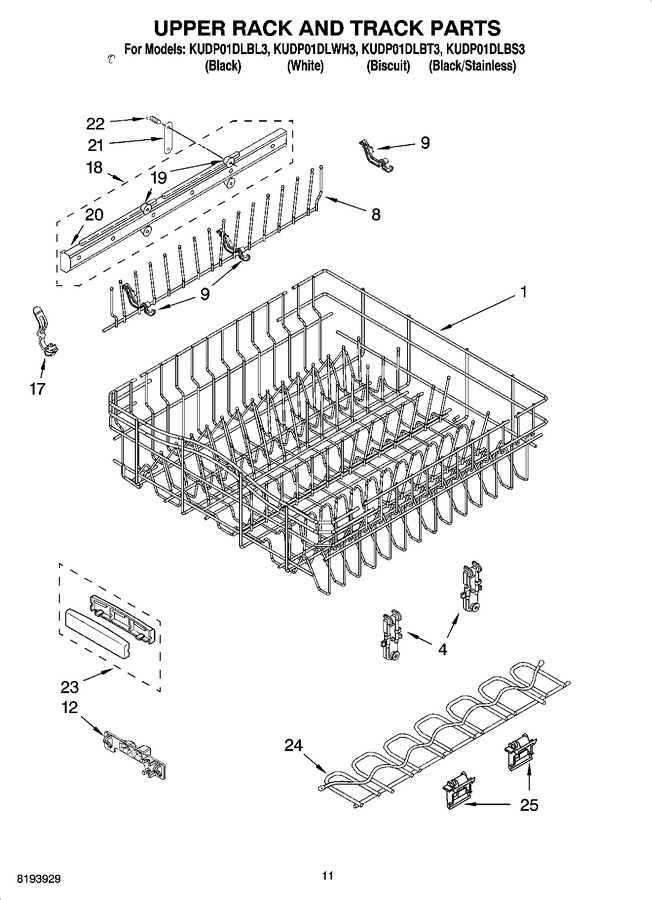

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Upper Wash And Rinse Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: 8539235)			Immediately	$ 179.58
4	WP8268785		Mount, Wheel Stationary   (Replaces: 8268785)			Immediately	$ 29.89
8	W10727426		Tine Row   (Replaces: 9744566)			Immediately	$ 85.10
9	WP8539190		Clip, Pivot   (Replaces: 8539190)				$ 88.99
12	WP8539102		Positioner, Dual   (Replaces: 8539102)				$ 103.88
17	WP8539101		Clip, No-flip   (Replaces: 8539101)				$ 84.22
18	W10404344		Track, Assembly (also Order Item 21)   (Replaces: 8531630)				$ 362.48
19	8270137		Mount, Track (also Order Item 21)				$ 6.50
20	8270136		Stop, Track				$ 40.52
21	WP9743002		Gasket, Bracket Mounting   (Replaces: 9743002)			Immediately	$ 10.04
22	WPW10348407		Screw (8)   (Replaces: 3400072)				$ 8.06
23	8519699		Handle, Dishrack		Appelez-nous	-
24	8270024		Cupshelf		Appelez-nous	-
25	8270025		Clip, Cupshelf				$ 42.05

    View Diagram in Separate Window       Print Part List
