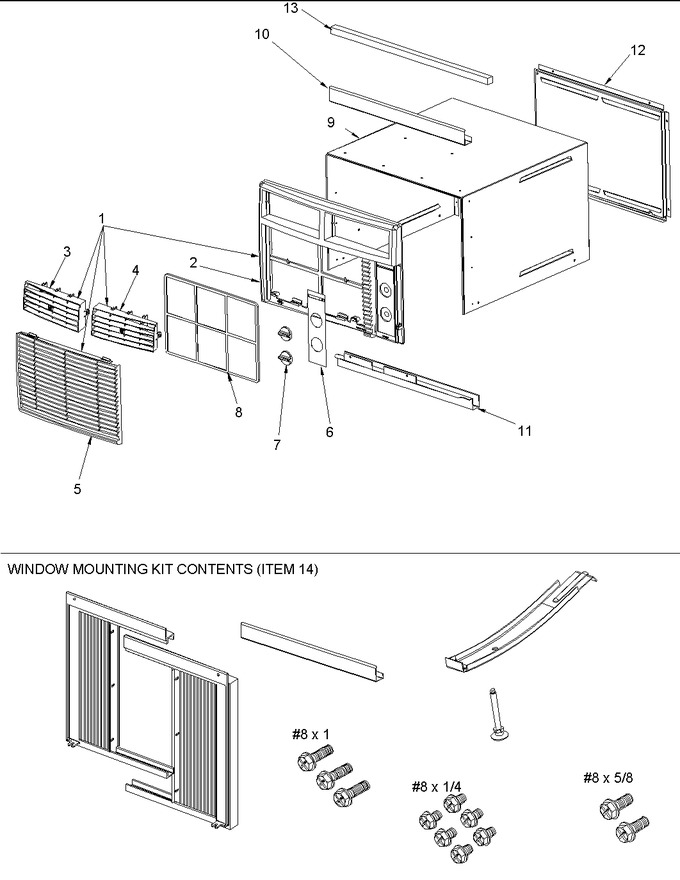

01 - Center Partition Assy And Controls
02 - Evaporator, Condenser And Compressor
03 - Outercase, Curtains And Front Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3075010 | Assy, Front (4-way Small) |
|
- | |||||
| 2 | BT3075103 | Frame, Front |
|
- | |||||
| 3 | BT3075412 | Assy, Vent L. (small) |
|
- | |||||
| 4 | BT3075410 | Assy, Vent R (small) |
|
- | |||||
| 5 | BT3075200 | Grill - Front |
|
- | |||||
| 6 | BT1493346 | Label, Control |
|
- | |||||
| 7 | BT3075631 | Knob, Rac (cool Gray) |
|
$ 30.93 | |||||
| 8 | BT1369600 | Filter, Air (serv) |
|
- | |||||
| 9 | 3050802S | Wrapper Assy |
|
- | |||||
| 10 | 3003000P | Support, Top (w/paint Small) |
|
- | |||||
| 11 | 3003103P | Guide, Bottom (w/paint Sm) |
|
- | |||||
| 12 | 3002200P | Panel, Rear Louver (service) |
|
- | |||||
| 13 | BT1392600 | Foam .75 X 1.50 (3.5 Ft) |
|
- | |||||
| 14 | WMK-SML | Kit, Window Install (small) |
|
- | |||||
| NI | BT1392601 | Foam .25 X .50 (7.0 Ft) |
|
- |
