SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm And Strainer Parts
04 - Lower Washarm And Strainer Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Upper Wash And Rinse Parts, Optional Parts (not Included)
11 - Upper Wash And Rinse Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8564554 Instructions, Installation Appelez-nous -
1 8531840 Energy Guide Appelez-nous -
1 8531778 Guide, Use & Care Tech Sheet Appelez-nous -
1 8564549 English/french Appelez-nous -
1 8531822 Video, Use & Care (dvd) Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 8268983 Stiffener, Door Special Order $ 38.77

4 W11113792 Panel Front   (Replaces: 8535133) In-Stock Immediately $ 373.42

5 W11763736 Access Panel (inculdes Item 14) (black)   (Replaces: 8543838) In-Stock Immediately $ 42.25

5 W10871198 Access Panel (inculdes Item 14) (biscuit)   (Replaces: 8543840) Special Order $ 161.50

5 W11763739 Access Panel (inculdes Item 14) (white)   (Replaces: 8543839) Special Order $ 42.65

6 8531915 Washer Appelez-nous -
7 8531940 Panel, Full Front (includes Items 16 & 17) (white) Special Order $ 290.08

7 8531941 Panel, Full Front (includes Items 16 & 17) (biscuit) Appelez-nous -
7 8531938 Panel, Full Front (includes Items 16 & 17) (stainless) Special Order $ 590.22

7 8531939 Panel, Full Front (includes Items 16 & 17) (black) Appelez-nous -
8 8270028 Toe Panel (includes Item 11) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Item 11) (white)   (Replaces: 8270027) Special Order $ 309.39

8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8270026) Special Order $ 174.04

9 8531916 Handle (includes Items 6 & 10) (stainless) Appelez-nous -
9 8531917 Handle (includes Items 6 & 10) (black) Appelez-nous -
9 8531919 Handle (includes Items 6 & 10) (biscuit) Appelez-nous -
9 8531918 Handle (includes Items 6 & 10) (white) Appelez-nous -
10 3400067 Screw Special Order $ 35.58

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W10831329 Insulation, Access Panel   (Replaces: 8268584) In-Stock Immediately $ 43.30

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26

16 2209118T Nameplate (biscuit) Appelez-nous -
16 2005292 Nameplate (black) Special Order $ 52.20

16 2209118W Nameplate (white) Appelez-nous -
17 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24


    View Diagram in Separate Window     Print Icon   Print Part List

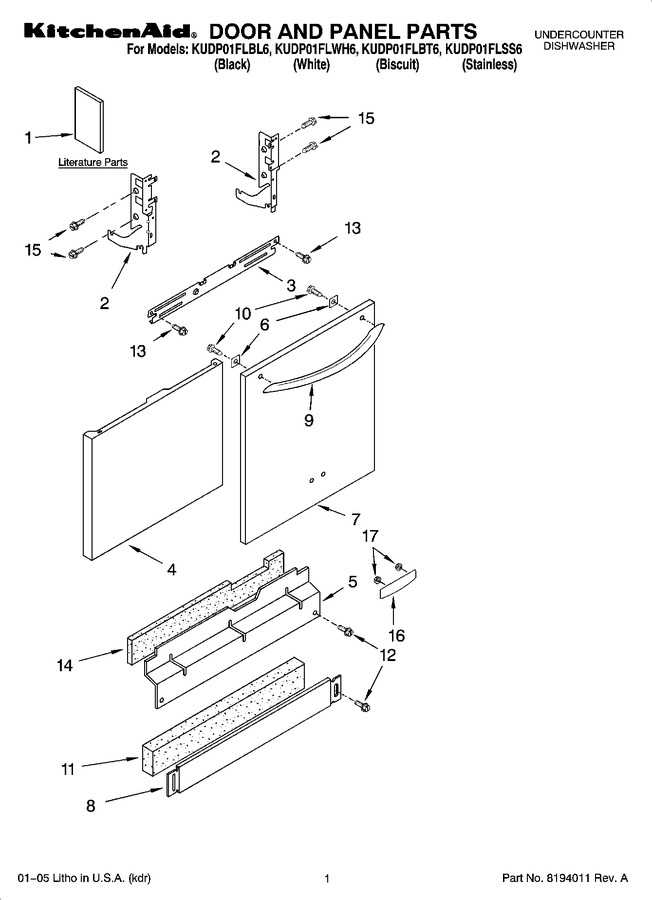

Diagram for KUDP01FLBL6
