Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8524480 Literature Parts (instructions, Installation) Appelez-nous -
1 LIT8531624 Literature Parts (energy Guide) Appelez-nous -
1 LIT8531532 Literature Parts (guide, Use & Care Tech Sheet) Appelez-nous -
1 LIT8537797 Literature Parts (english/french) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 8268983 Stiffener, Door Special Order $ 38.77

4 W11113792 Panel Front   (Replaces: 8524576) In-Stock Immediately $ 373.42

5 W11763736 Access Panel (inculdes Item 14) (black)   (Replaces: 8269007) In-Stock Immediately $ 42.25

5 W11763739 Access Panel (inculdes Item 14) (white)   (Replaces: 8268995) Special Order $ 42.65

5 W10871198 Access Panel (inculdes Item 14) (biscuit)   (Replaces: 8268996) Special Order $ 161.50

6 9744437 Plate, Backing Special Order $ 20.09

7 8531227 Panel, Full Front (includes Items 16 & 17) (white) Appelez-nous -
7 8531228 Panel, Full Front (includes Items 16 & 17) (biscuit) Appelez-nous -
7 8531225 Panel, Full Front (includes Items 16 & 17) (stainless) Appelez-nous -
7 8531226 Panel, Full Front (includes Items 16 & 17) (black) Appelez-nous -
8 8269001 Toe Panel (includes Item 11) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Item 11) (white)   (Replaces: 8269000) Special Order $ 309.39

8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8270026) Special Order $ 174.04

9 8524415 Handle (includes Items 6 & 10) (stainless) Appelez-nous -
9 8524418 Handle (includes Items 6 & 10) (black) Appelez-nous -
9 8524417 Handle (includes Items 6 & 10) (biscuit) Appelez-nous -
9 8524416 Handle (includes Items 6 & 10) (white) Appelez-nous -
10 3400067 Screw Special Order $ 35.58

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

12 3400865 Screw (biscuit) Special Order $ 14.07

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W10831329 Insulation, Access Panel   (Replaces: 8268584) In-Stock Immediately $ 43.30

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26

16 2209118T Nameplate (biscuit) Appelez-nous -
16 2005292 Nameplate (black) Special Order $ 52.20

16 2209118W Nameplate (white) Appelez-nous -
17 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24


    View Diagram in Separate Window     Print Icon   Print Part List

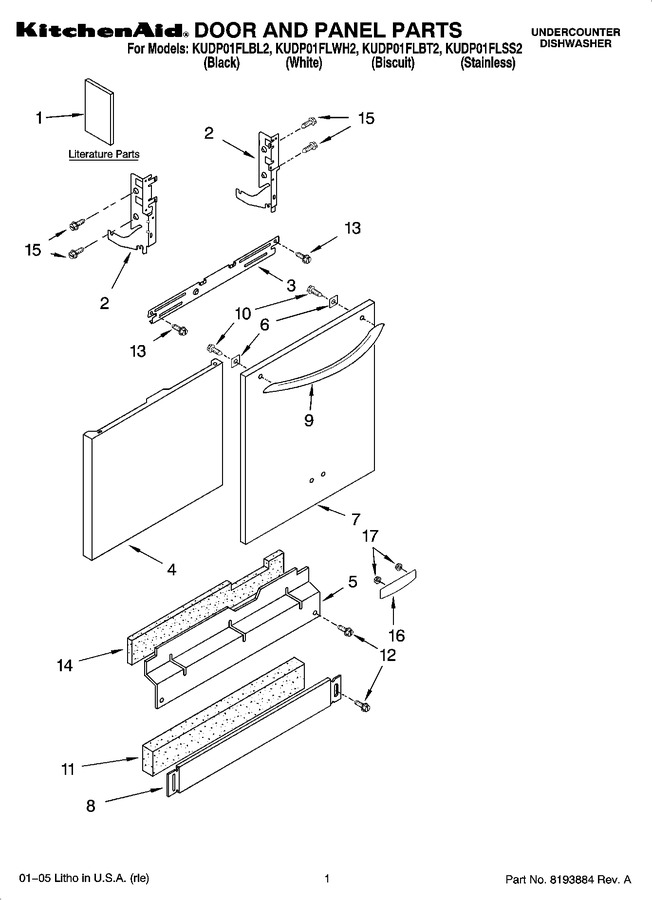

Diagram for KUDP01FLBT2
