SELECT A DIAGRAM

01 - Top And Cabinet Parts

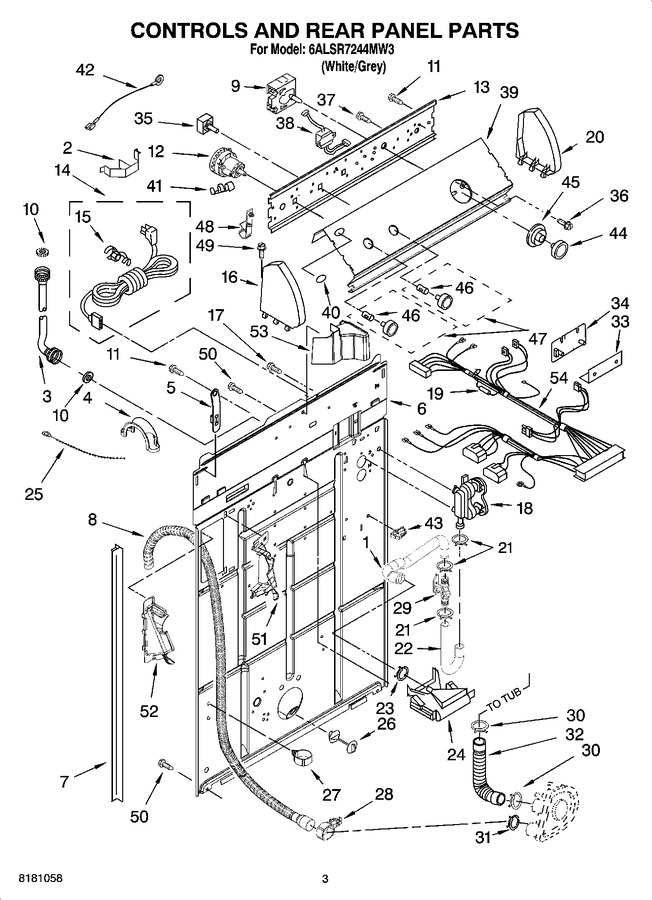

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 21.34
2	8055003		Clip, Harness & Pressure Hose				$ 36.24
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3366916)				$ 77.96
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 28)   (Replaces: 8559374)			Immediately	$ 67.38
9	3954170		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	WP16123		Washer, Water Inlet Hose (4)   (Replaces: 3976300)				$ 7.70
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10337780		Switch, Water Level   (Replaces: 3366847)			Immediately	$ 88.20
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 116.19
14	8559417		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
19	WPW10111181		Fuse (in Harness)   (Replaces: W10111181)				$ 33.15
20	8271363		Cap, End (r.h.)		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	8541668		Clamp, Hose				$ 21.26
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8316039		Shield, Atc		Appelez-nous	-
34	WPW10110247		Control, Atc   (Replaces: 3407159)				$ 129.44
35	3950352		Switch, Water Temperature		Appelez-nous	-
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	3400073		Screw, Ground		Appelez-nous	-
38	3407160		Transformer		Appelez-nous	-
39	8546340		Panel, Console (includes Item 40)		Appelez-nous	-
40	3955775		Medallion		Appelez-nous	-
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	3352944		Clip, Harness		Appelez-nous	-
44	WP8538949		Knob, Timer   (Replaces: 8538949)				$ 59.02
45	WP8538955		Dial, Timer   (Replaces: 8538955)				$ 53.03
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
47	WP8538957		Knob, Control   (Replaces: 8538957)				$ 55.74
48	8317975		Restraint, Harness				$ 5.86
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
52	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
53	8314879		Shield, Inlet Valve		Appelez-nous	-
54	3956710		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
