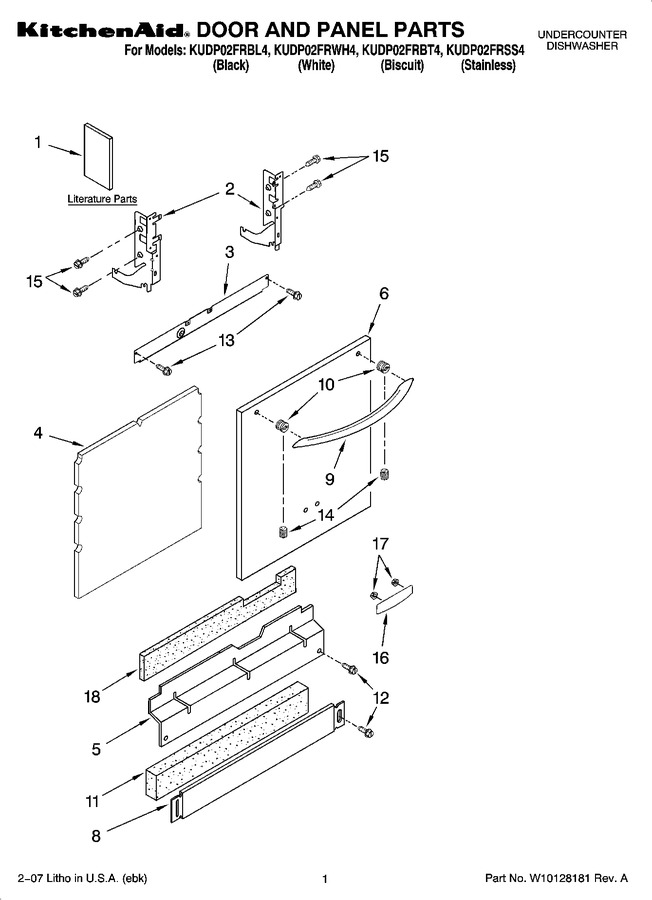

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8574093 Guide, Use & Care Appelez-nous -
1 8574116 Instructions, Installation Appelez-nous -
1 W10121917 Energy Guide Appelez-nous -
1 8564958 Dvd, Use & Care Appelez-nous -
1 W10077955 Guide, Consumer Reference Appelez-nous -
1 W10082651 Tech Sheet Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 8564886 Stiffener, Door Appelez-nous -
4 WPW10073520 Insulation, Door   (Replaces: 8542577) Special Order $ 96.23

5 W10871198 Access Panel (biscuit)   (Replaces: 8558262) Special Order $ 161.50

5 W11763736 Access Panel (black)   (Replaces: 8558260) In-Stock Immediately $ 42.25

5 W11763739 Access Panel (white)   (Replaces: 8558261) Special Order $ 42.65

6 8572316 Panel, Full Front (includes Items 16 & 17) (white) Appelez-nous -
6 8572319 Panel, Full Front (includes Items 16 & 17) (biscuit) Appelez-nous -
6 8572321 Panel, Full Front (includes Items 16 & 17) (stainless) Appelez-nous -
6 8572313 Panel, Full Front (includes Items 16 & 17) (black) Appelez-nous -
8 8558254 Toe Panel (includes Item 11) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Item 11) (white)   (Replaces: 8558253) Special Order $ 309.39

8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8558252) Special Order $ 174.04

9 W10083931A Handle (stainless)   (Replaces: W10077925) Special Order $ 107.25

9 W10077926 Handle (black) Appelez-nous -
9 W10077928 Handle (biscuit) Appelez-nous -
9 W10077927 Handle (white) Appelez-nous -
10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

12 WP302868 Screw   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 WP8534008 Screw   (Replaces: 8534008) Special Order $ 9.37

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26

16 2005292 Nameplate (black) Special Order $ 52.20

16 2209118W Nameplate (white) Appelez-nous -
16 2209118T Nameplate (biscuit) Appelez-nous -
17 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

18 W10831329 Insulation, Access Panel   (Replaces: 8542578) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List
