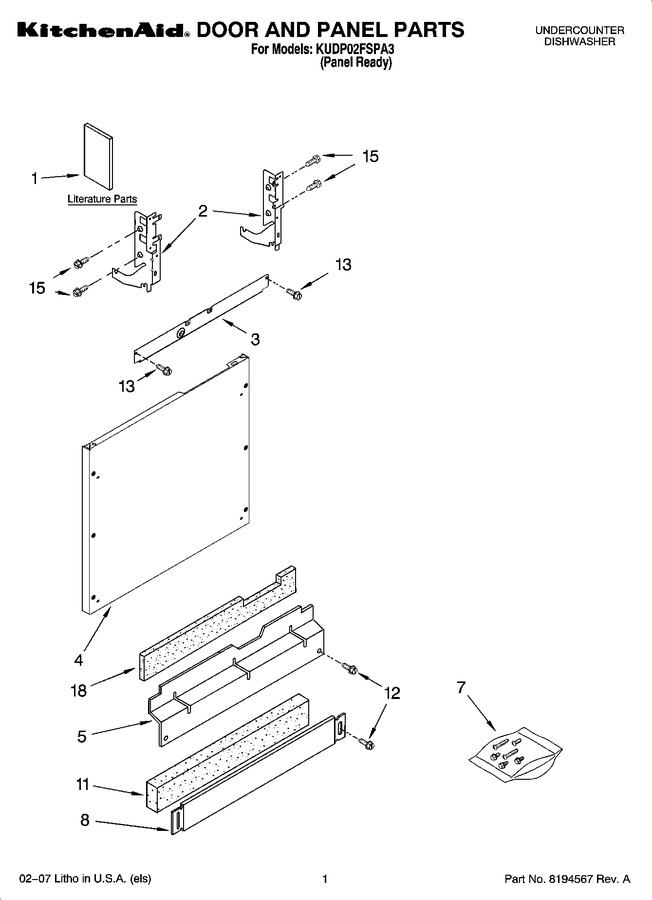

SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8564958		Dvd, Use & Care		Appelez-nous	-
1	8574116		Instructions, Installation		Appelez-nous	-
1	W10066080		Energy Guide		Appelez-nous	-
1	8574093		Guide, Use & Care		Appelez-nous	-
1	W10077955		Guide, Consumer Reference		Appelez-nous	-
1	W10082651		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8564886		Stiffener, Door		Appelez-nous	-
4	W11113792		Panel Front   (Replaces: 8535133)			Immediately	$ 373.42
5	W11763736		Access Panel (includes 18) (black)   (Replaces: 8558260)			Immediately	$ 42.25
7	8531882		Screws, Bag Door Assembly				$ 15.36
8	W10871196		Toe Panel (includes Item 11) (black)   (Replaces: 8558252)				$ 174.04
11	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26
18	W10831329		Insulation, Access Panel   (Replaces: 8542578)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
