SELECT A DIAGRAM

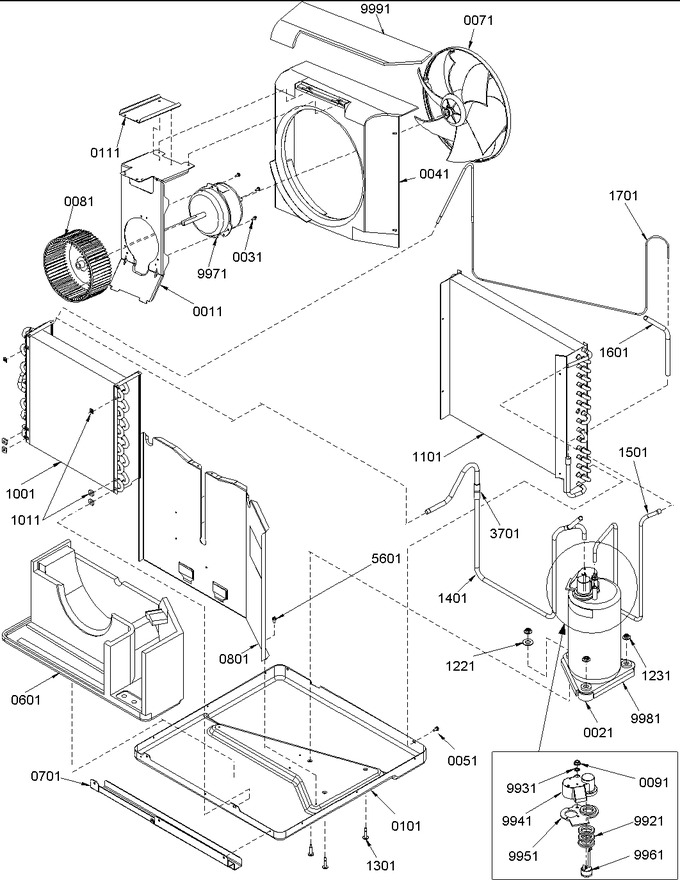

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control & Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20053906		Bracket, Fan		Appelez-nous	-
21	C6466001		Grommet		Appelez-nous	-
31	WP308544		Screw-tap-r   (Replaces: M0254830)			Immediately	$ 8.30
41	20051203		Shroud-condenser		Appelez-nous	-
71	20109601		Fan, Condenser		Appelez-nous	-
81	20109701		Wheel, Blower		Appelez-nous	-
91	WP776338		Nut, Terminal Cover K   (Replaces: A3436601)				$ 20.32
101	20053703		Basepan		Appelez-nous	-
601	20055303		Scroll, Blower Btm		Appelez-nous	-
701	Y20055201		Rail-bottom		Appelez-nous	-
801	20053806		Panel, Partition		Appelez-nous	-
1001	20119001		Assy, Evap Coil		Appelez-nous	-
1011	M0586001		Screw		Appelez-nous	-
1101	20119101		Assy, Cond Coil		Appelez-nous	-
1221	20113001		Washer		Appelez-nous	-
1231	20112901		Nut, Palnut		Appelez-nous	-
1301	20109101		Bolt, Shoulder		Appelez-nous	-
1401	20120601		Weld, Suction		Appelez-nous	-
1501	20119501		Tube, Discharge		Appelez-nous	-
1601	B1394401		Strainer		Appelez-nous	-
1701	20119601		Assy, Capillary		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
9921	A3436901		Spring, Overload		Appelez-nous	-
9931	A3436801		Washer		Appelez-nous	-
9941	10329001		Cover-term		Appelez-nous	-
9941	20120101		Cap,comp Term Cover		Appelez-nous	-
9951	A3436701		Gasket, Terminal		Appelez-nous	-
9961	D6961672		Overload		Appelez-nous	-
9971	20109904		Motor-fan		Appelez-nous	-
9981	D6887714		Comp 2r7u126a-6a		Appelez-nous	-
9991	20076902		Insulation, Shroud		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
