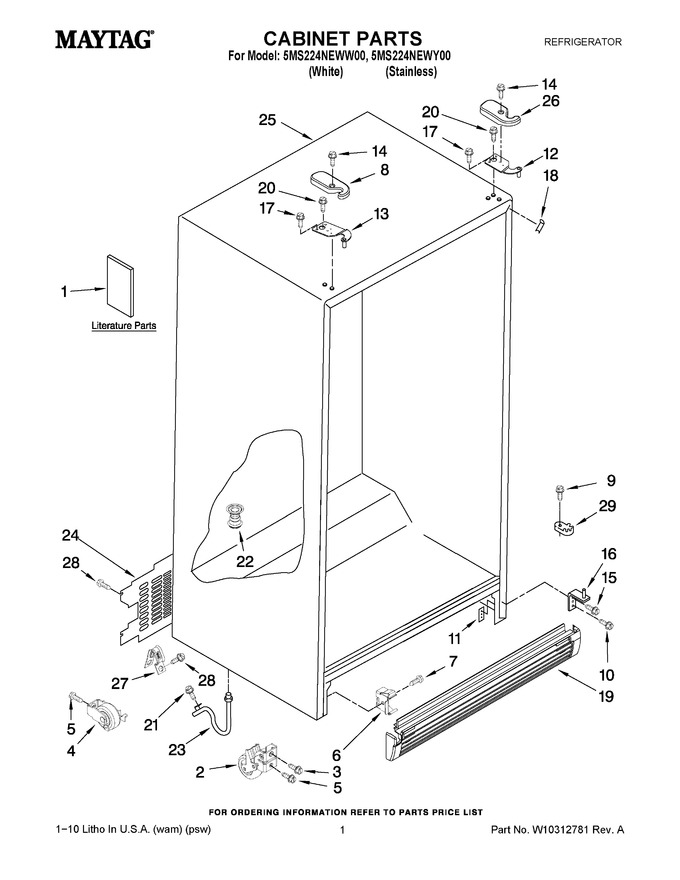

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10217561 | Use & Care Guide |
|
- | |||||
| 1 | W10142192 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10167125 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: W10250570) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 8 | W10138581 | Hinge Cover (fc) (white) |
|
- | |||||
| 8 | W10138584 | Hinge Cover (fc) (apollo Grey) |
|
$ 15.17 | |||||
| 9 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 | |||||
| 10 | W10856122 | Screw (2) (Replaces: 3400103) |
|
$ 7.76 | |||||
| 11 | WP2304249 | Plate, Screw (2) (Replaces: 2304249) |
|
$ 14.23 | |||||
| 12 | WP2203771 | Hinge Top, Rc (Replaces: 2203771) |
|
$ 98.22 | |||||
| 13 | WP2203770 | Hinge, Top Fc (Replaces: 2203770) |
|
$ 95.52 | |||||
| 14 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 15 | WP489497 | Screw (4) (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 16 | W10251408 | Hinge Bottom (2) |
|
$ 59.74 | |||||
| 17 | 3400858 | Screw |
|
- | |||||
| 18 | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 7.19 | ||||
| 18 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 7.82 | |||||
| 19 | W11167901 | Grille (white) (Replaces: W10283945) |
|
$ 111.20 | |||||
| 19 | W10191411 | Grille (midnight Grey) |
|
$ 83.07 | |||||
| 20 | WP489497 | Screw (6) (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 22 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 23 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 34.79 | |||||
| 24 | 2214572 | Cover-unit |
|
- | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | W10138576 | Hinge Cover (rc) (white) |
|
- | |||||
| 26 | W10138579 | Hinge Cover (rc) (apollo Grey) |
|
$ 35.68 | |||||
| 27 | 489348 | Clamp, Service Cord |
|
- | |||||
| 28 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 29 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.43 |
