SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)

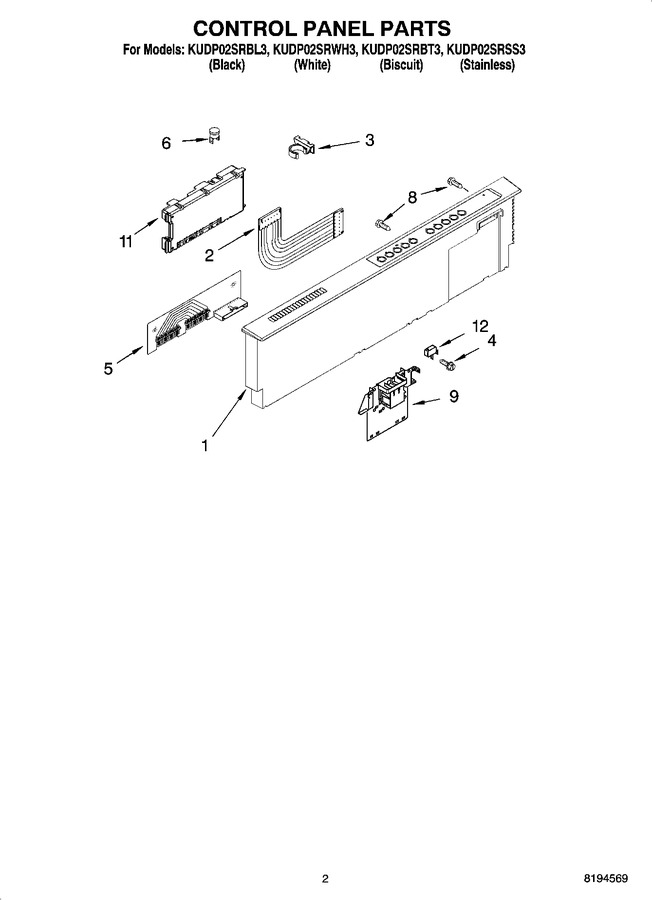

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10083814		Console Assembly (includes Insert) (white)		Appelez-nous	-
1	W10083815		Console Assembly (includes Insert) (biscuit)		Appelez-nous	-
1	W10083816		Console Assembly (includes Insert) (stainless)		Appelez-nous	-
1	W10083813		Console Assembly (includes Insert) (black)		Appelez-nous	-
2	8531877		Cable, Ribbon				$ 66.48
3	8546546		Clip, Bi-metal				$ 7.82
4	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
5	WP8531873		Board, Interconnect   (Replaces: 8531873)			Immediately	$ 190.07
6	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
9	8193830		Latch Assembly   (Replaces: 8270175)			Immediately	$ 137.81
11	WPW10084141		Control, Electronic   (Replaces: 8575277)			Immediately	$ 313.68
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
