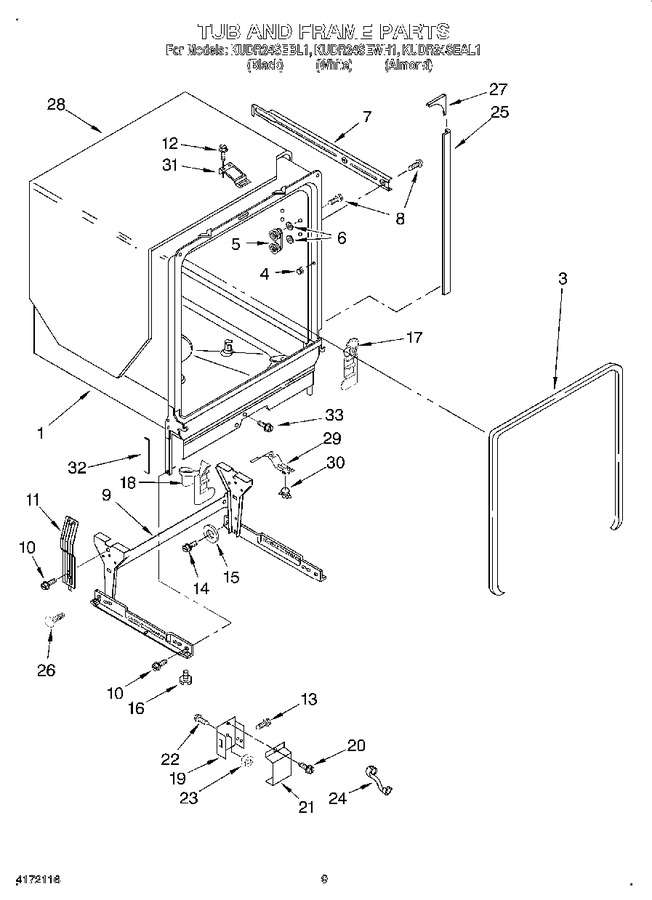

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9742605 | Tub Assembly |
|
- | |||||
| 3 | W11196317 | Door Seal (Replaces: 9742612) |
|
Immediately | $ 94.26 | ||||
| 4 | 9742788 | Plug Tub (2) |
|
- | |||||
| 5 | 9743468 | Wheel & Mount Assembly (also Order Item 6) |
|
$ 40.59 | |||||
| 6 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 10.04 | ||||
| 7 | 3378056 | Tub Stiffener |
|
- | |||||
| 8 | WPW10349488 | Screw (8) (Replaces: 3400003) |
|
$ 8.97 | |||||
| 9 | 9743149 | Rear Support Assembly |
|
- | |||||
| 10 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 11 | 9742610 | Connector Tub To Brace |
|
- | |||||
| 12 | WP90767 | Screw (2) (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | 3370389 | Screw (2) |
|
$ 5.70 | |||||
| 15 | 302819 | Wheel, Leg |
|
$ 5.65 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 3376439) |
|
Immediately | $ 88.96 | ||||
| 17 | 4172127 | Spacer, Tank - Rh (Replaces: 9743488) |
|
Immediately | $ 73.51 | ||||
| 18 | 4172127 | Spacer, Tank - Lh (Replaces: 9743489) |
|
Immediately | $ 73.51 | ||||
| 19 | 3370292 | Box, Terminal |
|
- | |||||
| 20 | 3369138 | Screw |
|
$ 5.81 | |||||
| 21 | 300068 | Cover, Terminal Box |
|
$ 30.14 | |||||
| 22 | WP250830 | Screw (Replaces: 3371578) |
|
$ 8.78 | |||||
| 23 | WP488130 | Nut (Replaces: 3371579) |
|
$ 7.32 | |||||
| 24 | 3370307 | Relief, Strain |
|
- | |||||
| 25 | 9743460 | Trim Strip, Tub |
|
- | |||||
| 26 | WP304666 | Retainer, Push (2) (Replaces: 304666) |
|
$ 29.45 | |||||
| 27 | 9742789 | Corner Trim, Tub |
|
- | |||||
| 28 | W11086533 | Shield, Sound Tub (Replaces: 9742661) |
|
Immediately | $ 31.30 | ||||
| 29 | 9742648 | Bracket,thermostat |
|
$ 51.51 | |||||
| 30 | WP661566 | Thermostat (Replaces: 3371618) |
|
Immediately | $ 31.28 | ||||
| 31 | 9742722 | Strike, Latch |
|
- | |||||
| 32 | 9743406 | Pad, Friction |
|
- | |||||
| 33 | WP489128 | Screw, Ground (Replaces: 3370225) |
|
$ 11.40 |
