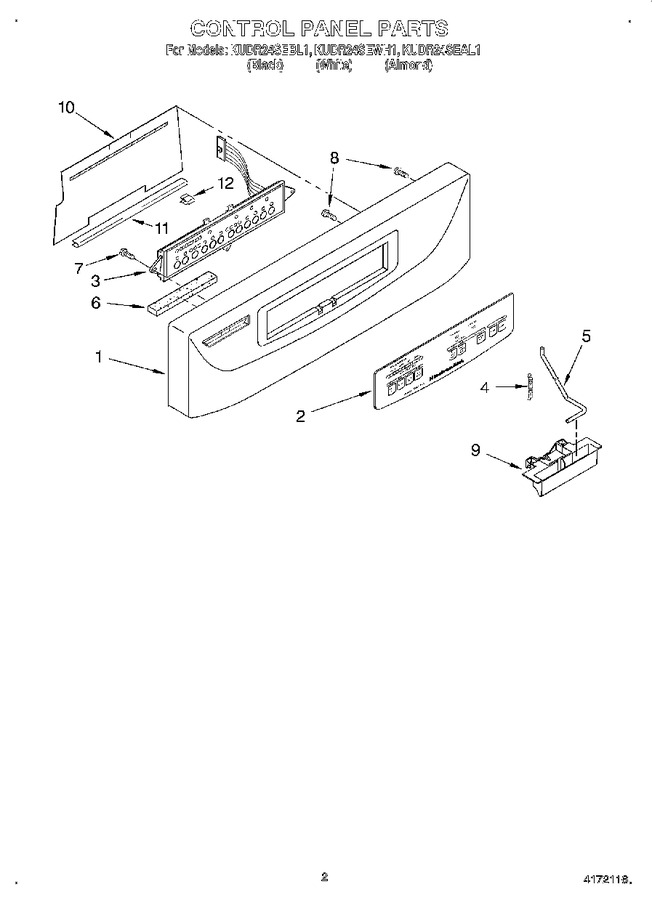

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743340		Console (also Order Item 2) (black Model)		Appelez-nous	-
1	9743341		Console (also Order Item 2) (white Model)		Appelez-nous	-
1	9743342		Console (also Order Item 2) (almond Model)		Appelez-nous	-
2	9743373		Insert (white Model)		Appelez-nous	-
2	9743374		Insert (almond Model)		Appelez-nous	-
2	9743372		Insert (black Model)		Appelez-nous	-
3	9743242		Switch, Panel (user Interface)				$ 154.19
4	9743350		Spring, Handle		Appelez-nous	-
5	9743351		Link, Handle		Appelez-nous	-
6	9743412		Sponge, Vent		Appelez-nous	-
7	WP304231		Screw (3)   (Replaces: 304231)			Immediately	$ 8.14
8	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP9743903		Handle, Latch (black Model)   (Replaces: 9743188)				$ 146.61
9	WP9743903		Handle, Latch (white Model)   (Replaces: 9743189)				$ 146.61
9	WP9743903		Handle, Latch (almond Model)   (Replaces: 9743190)				$ 146.61
10	9743440		Barrier, Display		Appelez-nous	-
11	9743444		Retainer, Barrier		Appelez-nous	-
12	9743442		Clip, Retainer		Appelez-nous	-
