SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm And Strainer Parts
04 - Lower Washarm And Strainer Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Upper Wash And Rinse Parts
11 - Upper Wash And Rinse Parts

Diagram for 12 - Miscellaneous Parts Optional Parts (not Included)
12 - Miscellaneous Parts Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8269519 Literature Parts (english) Appelez-nous -
1 LIT8269520 Literature Parts (french) Appelez-nous -
1 LIT8524479 Literature Parts (instructions, Installation) Appelez-nous -
1 LIT8269911 Literature Parts (energy Guide) Appelez-nous -
1 LIT8269908 Literature Parts (guide, Use & Care Tech Sheet) Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8269011) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left)   (Replaces: 8269012) In-Stock Immediately $ 142.39

3 8268983 Stiffener, Door Special Order $ 38.77

4 8270129 Panel Front (custom Panel Ready) Appelez-nous -
4 W10301577 Panel Front (stainless)   (Replaces: 8270064) Special Order $ 399.50

4 W10301571 Panel Front (black)   (Replaces: 8269841) Special Order $ 398.59

4 8269842 Panel Front (white) Appelez-nous -
5 W11763736 Access Panel (includes Item 7) (black)   (Replaces: 8269007) In-Stock Immediately $ 42.25

5 W11763739 Access Panel (includes Item 7) (white)   (Replaces: 8269008) Special Order $ 42.65

6 WPW10073520 Insulation, Door   (Replaces: 8268580) Special Order $ 96.23

7 W10831329 Insulation, Access Panel   (Replaces: 8268584) In-Stock Immediately $ 43.30

8 8269004 Toe Panel (includes Item 11) (white) Appelez-nous -
8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8269003) Special Order $ 174.04

9 2005292 Nameplate (for Model Kuds01djss) Special Order $ 52.20

10 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP693995 Screw   (Replaces: 693995) In-Stock Immediately $ 7.55

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 8.26


    View Diagram in Separate Window     Print Icon   Print Part List

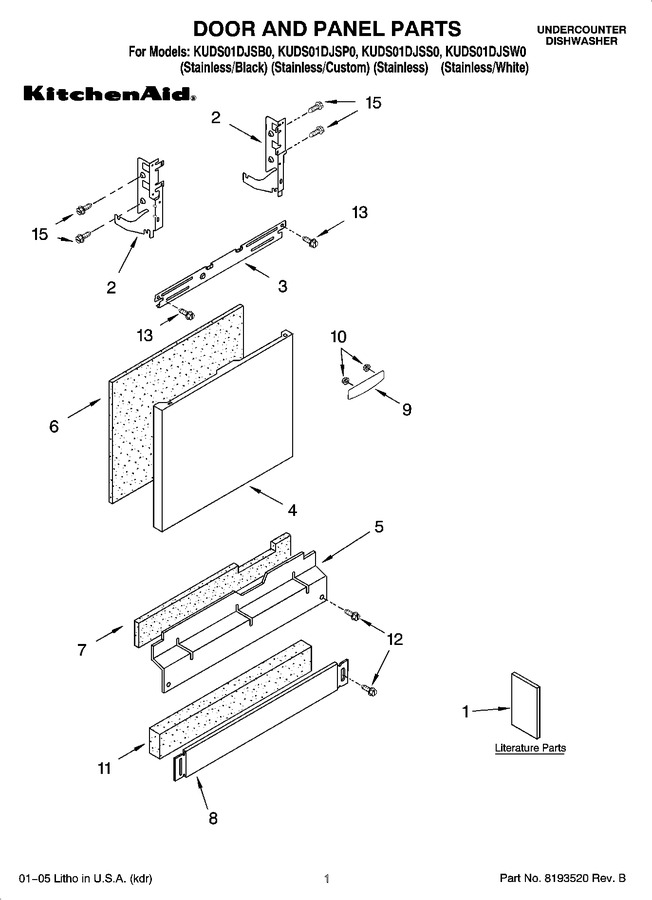

Diagram for KUDS01DJSW0
