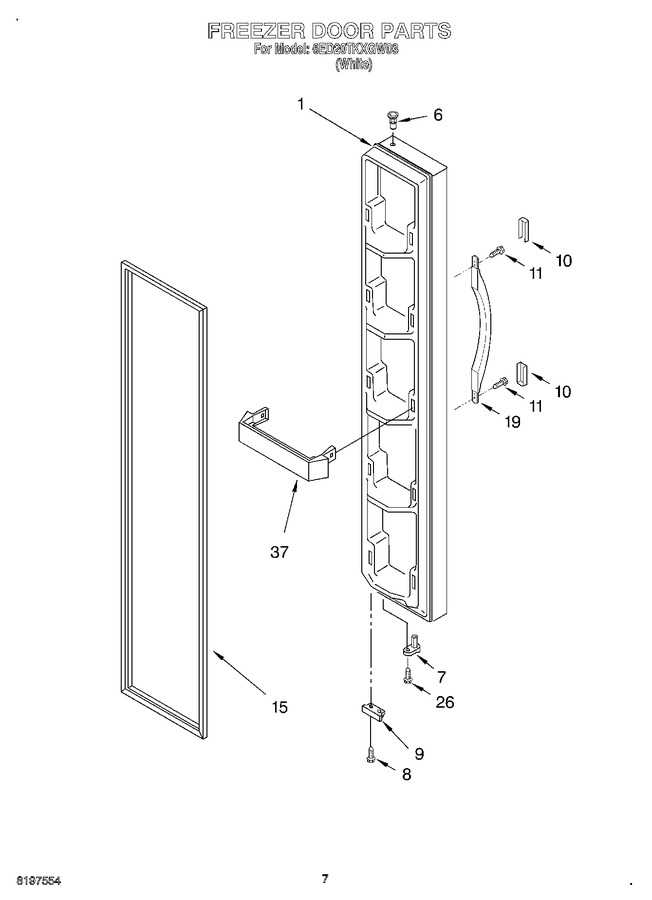

05 - Freezer Door
06 - Refrigerator Door
07 - Unit
08 - Control, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2212055W | Freezer Door (includes Item 15) |
|
- | |||||
| 6 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 7.34 | |||||
| 7 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 8 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 9 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 10 | WP2193353W | Endcap, Handle (Replaces: 2193353W) |
|
$ 7.67 | |||||
| 11 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.57 | |||||
| 15 | 2159072 | Door Gasket, Magnetic (service) |
|
$ 291.24 | |||||
| 19 | 2186649W | Handle, Center |
|
$ 70.49 | |||||
| 26 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 37 | 2182776 | Trim, Door Shelf (5) |
|
- |
