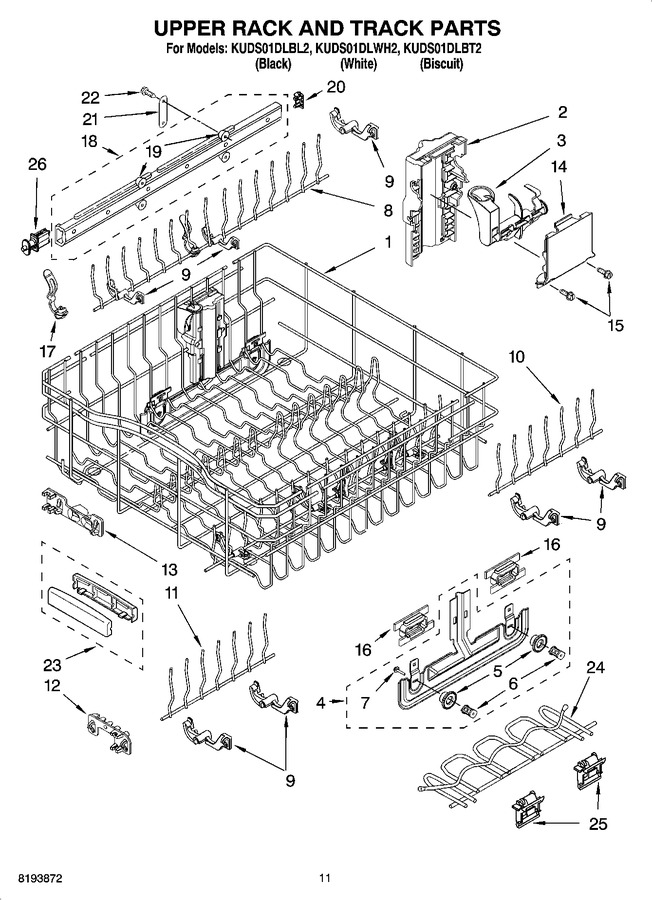

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193944		Dishrack, Upper   (Replaces: 8519627)				$ 247.25
2	8193741		Housing, Adjuster   (Replaces: 8531344)				$ 101.10
3	8531309		Actuator, Adjuster (left Hand)		Appelez-nous	-
3	8531310		Actuator, Adjuster (right Hand)		Appelez-nous	-
4	W10728567		Adjuster Assembly   (Replaces: 8268653)				$ 194.00
5	WP8270138		Wheel   (Replaces: 8270138)			Immediately	$ 11.88
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
7	8281156		Screw				$ 5.83
8	W10727426		Tine Row   (Replaces: 8519683)			Immediately	$ 85.10
9	8519669		Clip, Pivot				$ 30.10
10	8519684		Tine Row, Rear		Appelez-nous	-
11	8519685		Tine Row, Front		Appelez-nous	-
12	8531311		Positioner, Dual		Appelez-nous	-
13	8531312		Positioner, Multi		Appelez-nous	-
14	8193741		Cover, Adjuster   (Replaces: 8531346)				$ 101.10
15	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
16	8268738		Positioner, Arm				$ 42.48
17	8531313		Clip, No-flip		Appelez-nous	-
18	W10404344		Track, Assembly (also Order Item 21)   (Replaces: 8531630)				$ 362.48
19	8270137		Mount, Track (also Order Item 21)				$ 6.50
20	8270136		Stop, Track				$ 40.52
21	WP9743002		Gasket, Bracket Mounting   (Replaces: 9743002)			Immediately	$ 10.04
22	WPW10348407		Screw (8)   (Replaces: 3400072)				$ 8.06
23	8519699		Handle, Dishrack		Appelez-nous	-
24	W11125975		Cupshelf   (Replaces: 8268804)				$ 140.19
25	8270025		Clip, Cupshelf				$ 42.05
26	8531301		Stop, Track Removable		Appelez-nous	-
