Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: 8539235) In-Stock Immediately $ 179.58

2 8193741 Housing, Adjuster   (Replaces: 8531344) Special Order $ 101.10

3 8531309 Actuator, Adjuster (left Hand) Appelez-nous -
3 8531310 Actuator, Adjuster (right Hand) Appelez-nous -
4 W10728567 Adjuster Assembly   (Replaces: 8268653) Special Order $ 194.00

5 WP8270138 Wheel   (Replaces: 8270138) In-Stock Immediately $ 11.88

6 WP8268703 Axel, Adjuster   (Replaces: 8268703) In-Stock Immediately $ 11.28

7 8281156 Screw Special Order $ 5.83

8 W10727426 Tine Row   (Replaces: 9744566) In-Stock Immediately $ 85.10

9 WP8539190 Clip, Pivot   (Replaces: 8539190) Special Order $ 88.99

10 W10727426 Tine Row, Front   (Replaces: 9744568) In-Stock Immediately $ 85.10

11 W10727426 Tine Row, Rear   (Replaces: 9744567) In-Stock Immediately $ 85.10

12 WP8539102 Positioner, Dual   (Replaces: 8539102) Special Order $ 103.88

13 WP8539103 Positioner, Multi   (Replaces: 8539103) Special Order $ 97.02

14 8193741 Cover, Adjuster   (Replaces: 8531346) Special Order $ 101.10

15 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

16 8268738 Positioner, Arm Special Order $ 42.48

17 WP8539101 Clip, No-flip   (Replaces: 8539101) Special Order $ 84.22

18 W10404344 Track, Assembly (also Order Item 21)   (Replaces: 8531630) Special Order $ 362.48

19 8270137 Mount, Track (also Order Item 21) Special Order $ 6.50

20 8270136 Stop, Track Special Order $ 40.52

21 WP9743002 Gasket, Bracket Mounting   (Replaces: 9743002) In-Stock Immediately $ 10.04

22 WPW10348407 Screw (8)   (Replaces: 3400072) Special Order $ 8.06

23 8519699 Handle, Dishrack Appelez-nous -
24 W11125975 Cupshelf   (Replaces: 8268804) Special Order $ 140.19

25 8270025 Clip, Cupshelf Special Order $ 42.05

26 8531301 Stop, Track Removable Appelez-nous -

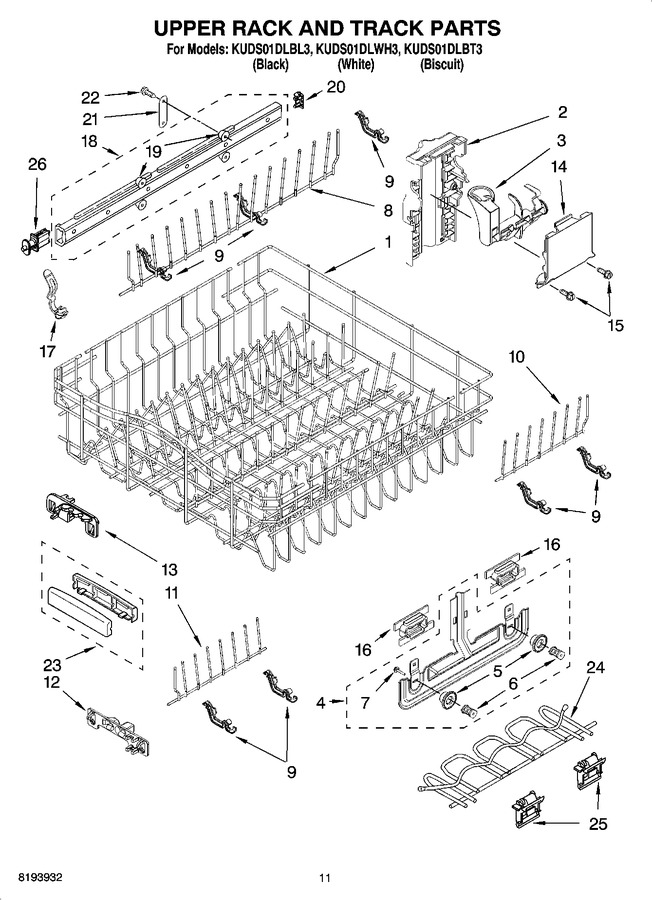

    View Diagram in Separate Window     Print Icon   Print Part List
