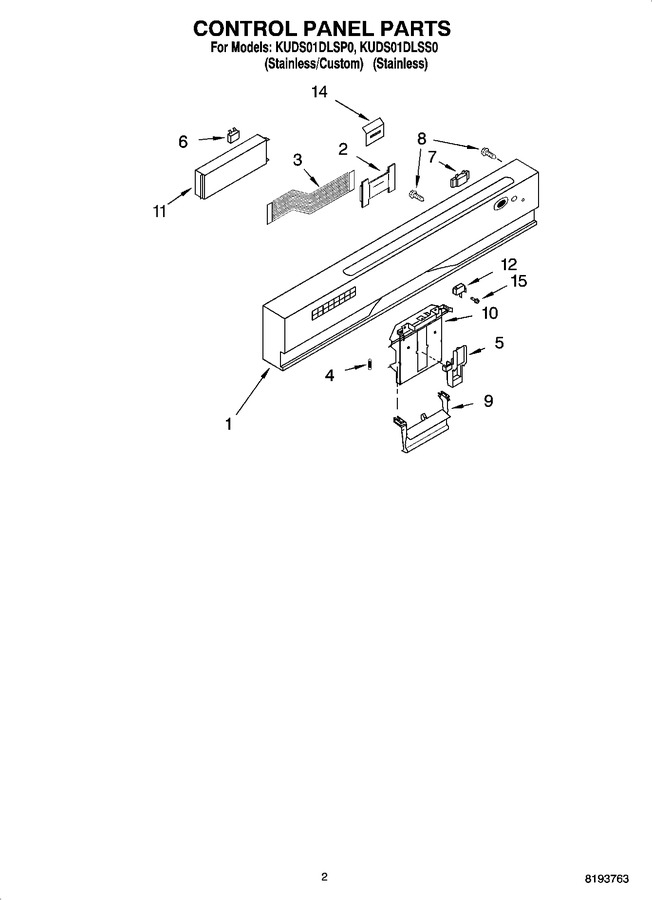

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Upper Wash And Rinse Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8531196		Console Asm. (includes Active Overlay, Insert, & Items 2 & 3)		Appelez-nous	-
2	8283453		Board, Interconnect		Appelez-nous	-
3	8269202		Tail - Active Overlay				$ 68.73
4	WP8268540		Spring, Handle   (Replaces: 8268540)			Immediately	$ 10.37
5	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
6	8193762		Fuse, Thermal Electronic   (Replaces: 8269213)			Immediately	$ 46.17
7	WP8269206		Display, Dual Digit   (Replaces: 8269206)				$ 137.42
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP8269117		Handle, Latch (gray)   (Replaces: 8270115)			Immediately	$ 102.64
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
11	8528874		Control, Electronic		Appelez-nous	-
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
14	8268547		Shield		Appelez-nous	-
15	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
