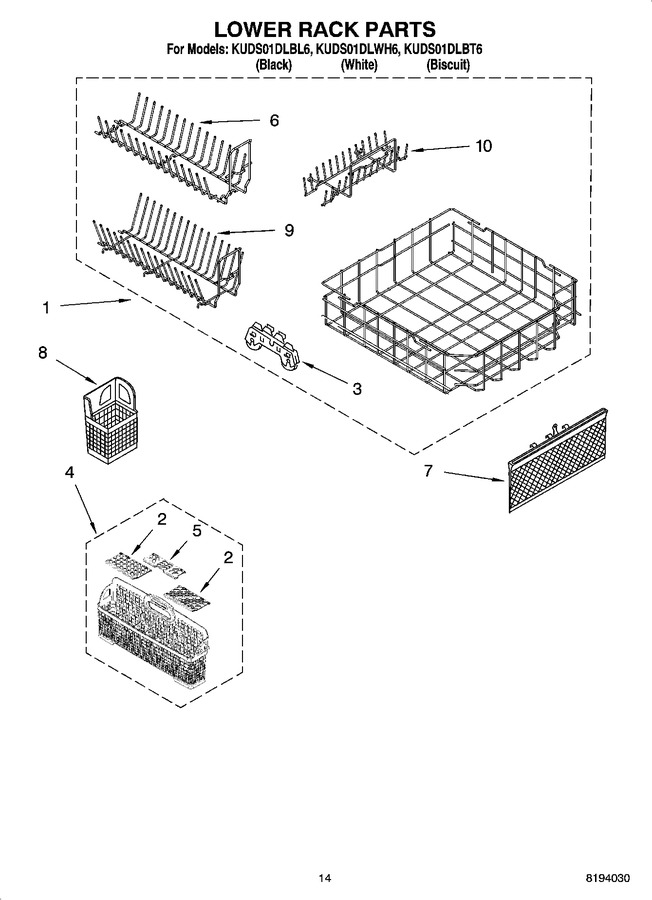

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10780925		Lower Rack Assembly (includes Item 3)   (Replaces: 8519705)			Immediately	$ 212.49
2	8519663		Lid, Silverware Basket (right Side)				$ 94.69
2	8519695		Lid, Silverware Basket (left Side)				$ 24.92
3	WP8268713		Wheel & Transport Assembly   (Replaces: 8268713)				$ 94.97
4	WPW10190415		Basket, Silverware   (Replaces: 8531282)			Immediately	$ 99.05
5	8519662		Lid, Basket Center				$ 52.35
6	8519706		Insert, Large		Appelez-nous	-
7	8519716		Basket,small Items				$ 57.95
8	8519702		Basket, Utnesil				$ 39.71
9	8519707		Insert, Medium		Appelez-nous	-
10	8519717		Insert, Small		Appelez-nous	-
	8171477		Floor Mount Kit				$ 62.44
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	N/A		Anti-tip Kit		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8171656		Accessories Side Panel Kits (white)				$ 418.17
	8171657		Accessories Side Panel Kits (black)				$ 625.77
	8171658		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	8171659		Accessories Side Panel Kits (stainless Steel Custom Panel Kits)				$ 705.00
	8171555		Accessories Side Panel Kits (black)		Appelez-nous	-
	8171556		Accessories Side Panel Kits (white)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	8171557		Accessories Side Panel Kits (biscuit Color Panel Kits)		Appelez-nous	-
	4396397		Accessories Side Panel Kits (cobalt Blue)		Appelez-nous	-
	4396398		Accessories Side Panel Kits (hunter Green)		Appelez-nous	-
	4396399		Accessories Side Panel Kits (empire Red)		Appelez-nous	-
	4396400		Accessories Side Panel Kits (majestic Yellow)		Appelez-nous	-
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	8171571		Paint, Touch-up 1/2 Oz. (cobalt Blue)				$ 32.06
	8171651		Paint, Touch-up 1/2 Oz. (hunter Green)				$ 20.17
	8171652		Paint, Touch-up 1/2 Oz. (empire Red)				$ 31.73
	8171653		Paint, Touch-up 1/2 Oz. (majestic Yellow)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
